Screw compressor DIS-200VPS

airdiesel enginemobile

Overview

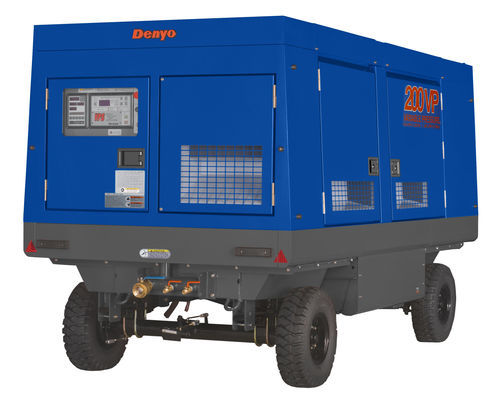

Portable diesel-driven air compressor DIS-200VPS providing a rated pressure of 1.27 MPa (184 psi) and an air delivery of 21.2 m³/min (749 cfm), equipped with a Hino J08E-UK engine and a 400 L fuel tank. Designed for continuous operation on worksites and in industrial environments.

Key specifications

• Model: DIS-200VPS
• Rated pressure: 1.27 MPa (184 psi)
• Air delivery: 21.2 m³/min (749 cfm)
• Air tank capacity: 0.236 m³
• Engine: Hino J08E-UK
• Fuel type: Diesel
• Fuel consumption: 32.8 L/h
• Fuel tank capacity: 400 L
• Emission regulation: Tier 3 (Japanese regulation)
• Dimensions (L×W×H): 3,915 × 1,680 × 2,050 mm
• Weight: 3,450 kg
• Sound level (measured at 7 m): 72 dB

Applications

• Compressed air supply for construction, road works and mining tools
• Industrial applications requiring mobile compressed air
• Emergency or remote site operations

Operation and maintenance

• Diesel engine with standard service intervals; follow the manufacturer's maintenance manual for schedules
• Accessible service points for filter replacements and oil changes to reduce downtime
• Spare parts and consumables compatible with Hino J08E series

Compliance and options

• Complies with Tier 3 Japanese emission regulation
• Optional skid mounting, trailer or containerized enclosure available
• Available control panels, silencers and advanced filtration upgrades on request
