Screw compressor DIS-670LS-D

airdiesel engineportable

Overview

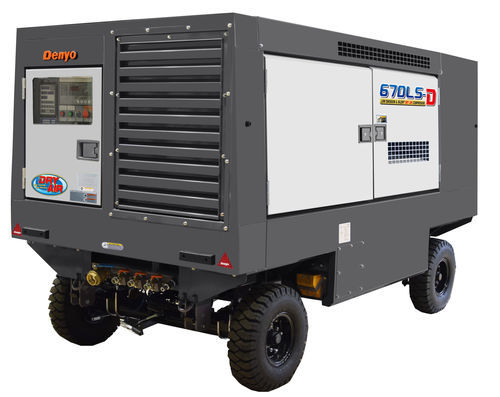

DIS-670LS-D is a diesel-driven portable air compressor designed for industrial and construction sites. It delivers high airflow at a rated pressure of 0.7 MPa and is equipped with a large fuel tank for extended operation.

Key specifications

• Model: DIS-670LS-D
• Rated Pressure: 102 psi / 0.7 MPa
• Air Delivery: 19.0 m³/min (671 cfm)
• Air Tank Capacity: 0.192 m³
• Engine: Isuzu AI-4HK1X
• Fuel: Diesel
• Fuel Consumption: 22.9 L/h
• Tank Capacity: 270 L
• Emission Regulation: Tier 3 (Japanese regulation)
• Dimension (L×W×H): 3,680 × 1,680 × 2,010 mm
• Weight: 2,840 kg
• Sound Level (from 7 m): 74 dB

Engine & fuel
The unit is powered by an Isuzu AI-4HK1X diesel engine. Fuel consumption is 22.9 L/h with a 270 L onboard tank, allowing for prolonged operation on remote sites.

Dimensions & weight

• Overall dimensions (L×W×H): 3,680 × 1,680 × 2,010 mm
• Operating weight: 2,840 kg

Noise & compliance
Measured sound level at 7 m is 74 dB. The engine meets Tier 3 (Japanese regulation) emission requirements.

Typical applications

• Construction and roadwork
• Mine and quarry operations
• Industrial maintenance and site utilities
• Heavy equipment support

Maintenance & options
Standard maintenance intervals apply to engine and compressor elements. Optional accessories and site-specific configurations may be available—consult the supplier for details.
