Screw compressor DIS-670LS

airdiesel enginemobile

Overview

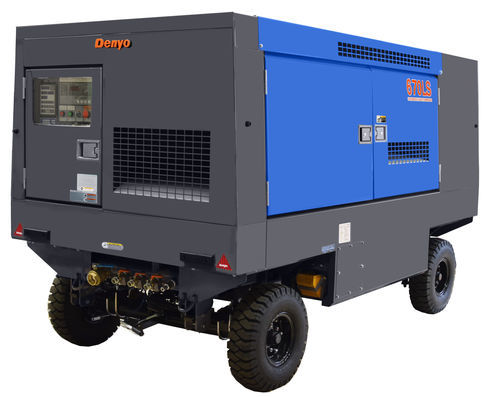

Mobile diesel-driven air compressor for industrial use. Model DIS-670LS provides compressed air at a rated pressure of 0.7 MPa (102 psi) with an air delivery of 19.0 m³/min (671 cfm).

Key specifications

• Model: DIS-670LS
• Rated pressure: 0.7 MPa (102 psi)
• Air delivery: 19.0 m³/min (671 cfm)
• Air tank capacity: 0.192 m³ (192 L)
• Engine: Isuzu AI-4HK1X
• Fuel: Diesel
• Fuel consumption: 22.9 L/h
• Fuel tank capacity: 270 L
• Emission regulation: Tier 3 (Japanese regulation)
• Dimensions (L × W × H): 3,680 × 1,680 × 2,010 mm
• Weight: 2,690 kg
• Sound level (at 7 m): 74 dB

Engine & fuel
The compressor is powered by an Isuzu AI-4HK1X diesel engine. Fuel consumption is 22.9 L/h and the integrated fuel tank capacity is 270 L.

Performance & dimensions
Designed for continuous supply of compressed air at 0.7 MPa. Compact footprint for a unit of this capacity; dimensions and weight provided for transport and installation planning.

Options & maintenance
Options: Not specified.

Compliance

• Emission regulation: Tier 3 (Japanese regulation)
