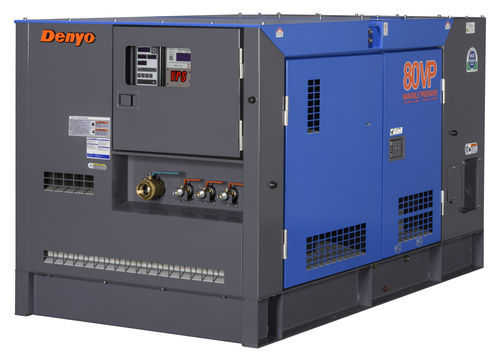

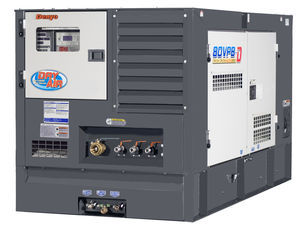

Screw compressor DIS-80VPB

airdieselmobile

Overview
Portable diesel-driven air compressor DIS-80VPB delivering up to 9.1 m³/min (321 cfm) at a rated pressure of 1.03 MPa (149 psi). Equipped with a Kubota V3800-DI-TI-K3B engine, 170 L fuel tank and compact dimensions for site deployment and industrial pneumatic applications.

Key features

• Rated pressure: 1.03 MPa (149 psi)
• Air delivery: 9.1 m³/min (321 cfm)
• Engine: Kubota V3800-DI-TI-K3B (diesel)
• Fuel consumption: 12.1 L/h — Fuel tank capacity: 170 L
• Air tank capacity: 0.11 m³
• Sound level (at 7 m): 70 dB
• Emission regulation: Tier 3 (Japanese regulation)

Technical specifications

• Model: DIS-80VPB
• Rated Pressure: 149 psi / 1.03 MPa
• Air Delivery: 9.1 m³/min (321 cfm)
• Air Tank Capacity: 0.11 m³
• Engine: Kubota V3800-DI-TI-K3B
• Fuel: Diesel
• Fuel Consumption: 12.1 L/h
• Fuel Tank Capacity: 170 L
• Emission Regulation: Tier 3 (Japanese regulation)
• Dimensions (L×W×H): 2,270 × 1,250 × 1,300 mm
• Weight: 1,400 kg
• Sound Level (from 7 m): 70 dB

Applications

• Construction and civil engineering sites
• Roadworks, drilling and quarrying operations
• Industrial pneumatic tools and maintenance tasks

Maintenance & compliance

• Accessible service points for routine maintenance and inspections
• Complies with Tier 3 Japanese emission regulation
• Refer to engine and compressor manuals for recommended service intervals and replacement parts
