Screw compressor DIS-80VPBE-D

airdiesel enginemobile

Product overview

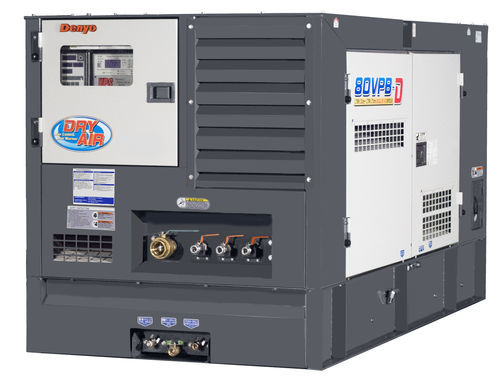

Box-type diesel air compressor for industrial use. Model DIS-80VPBE-D equipped with Kubota V3800-DI-TI-K3B engine, engineered to operate at a rated pressure of 149 psi (1.03 MPa) with an air delivery of 9.1 m³/min (321 cfm).

Technical specifications

• Model: DIS-80VPBE-D
• Rated Pressure: 149 psi / 1.03 MPa
• Air Delivery: 9.1 m³/min (321 cfm)
• Air Tank Capacity: 0.10 m³
• Engine: Kubota V3800-DI-TI-K3B
• Fuel: Diesel
• Fuel Consumption: 12.1 L/h
• Fuel Tank Capacity: 170 L
• Eco Base Capacity: 250 L
• Dimensions (L×W×H): 2,600×1,300×1,400 mm
• Weight: 1,690 kg
• Sound Level (at 7 m): 69 dB
• Emission Regulation: Tier 3 (Japanese regulation)

Typical applications

• Construction and road works
• Mining and quarrying
• Shipyards and offshore support
• Industrial maintenance and fabrication

Operational features

• Box-type enclosure for transport and site protection
• Large fuel and eco base capacities for extended runtime
• Low external sound level: 69 dB measured at 7 m
• Diesel propulsion suitable for continuous industrial duty

Compliance & maintenance

• Complies with Tier 3 (Japanese regulation)
• Requires regular maintenance per engine and compressor manufacturer instructions
• Spare parts and service available through authorized dealers
