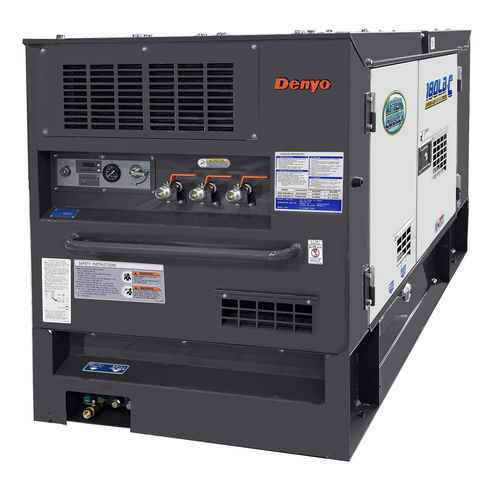

Screw compressor DAS-180LBE-C

airdiesel enginemobile

Product overview
The DAS-180LBE-C is a diesel-driven portable air compressor delivering 5.1 m³/min (180 cfm) at a rated pressure of 0.7 MPa (102 psi). It is powered by a Kubota V2403-K3A engine and includes a 90 L fuel tank, making it suitable for mobile and on-site pneumatic applications.

Key specifications

• Model: DAS-180LBE-C
• Rated pressure: 102 psi / 0.7 MPa
• Air delivery: 5.1 m³/min (180 cfm)
• Air tank capacity: 0.039 m³
• Engine: Kubota V2403-K3A
• Fuel type: Diesel
• Fuel consumption: 6.8 L/h
• Fuel tank capacity: 90 L
• Emission regulation: Tier 3 (Japanese regulation)
• Dimensions (L×W×H): 1,580 × 1,000 × 1,200 mm
• Eco base capacity: 132 L
• Weight: 830 kg
• Sound level (measured from 7 m): 67 dB

Applications

• Mobile construction and civil works (pneumatic tools, jackhammers)
• Sandblasting and surface preparation
• Temporary power for pneumatic equipment on sites

Operation & maintenance

• Fuel consumption: 6.8 L/h — plan refuelling based on 90 L tank capacity
• Dimensions and weight allow trailer or truck transport planning (1,580×1,000×1,200 mm; 830 kg)
• Noise level 67 dB at 7 m — consider placement for site compliance

Compliance

• Meets Tier 3 emission regulation (Japanese regulation)
