Screw compressor DIS-200VPS-D

airdiesel-poweredportable

Product

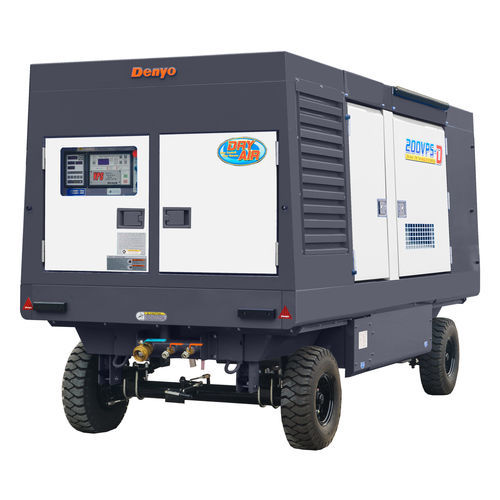

Trailer-mounted air compressor DIS-200VPS-D
Category: Trailer-type air compressor

Key specifications

• Model: DIS-200VPS-D
• Rated pressure: 184 psi / 1.27 MPa
• Air delivery: 21.2 m³/min (749 cfm)
• Air tank capacity: 0.21 m³
• Engine: Hino J08E-UK
• Fuel: Diesel
• Fuel consumption: 32.8 L/h
• Fuel tank capacity: 400 L
• Emission regulation: Tier 3 (Japanese regulation)
• Dimensions (L×W×H): 4,115×1,680×2,150 mm
• Weight: 3,680 kg
• Sound level (from 7 m): 72 dB

Engine & fuel
The unit is powered by a Hino J08E-UK diesel engine designed for continuous operation. Fuel consumption and the 400 L tank provide extended autonomy for remote worksites and long shifts.

Applications

• Construction and roadworks
• Mining and quarrying
• Pipeline and civil engineering
• Industrial maintenance and shutdowns
• Shipyards and offshore support

Dimensions & acoustic
Trailer configuration with overall dimensions 4,115×1,680×2,150 mm and transport weight 3,680 kg. Measured sound level at 7 m is 72 dB, suitable for outdoor worksites where mobility and power are required.

Options & service
Available options and service packages include site customization, transport preparation and maintenance agreements. Contact supplier for configurations, spare parts and after-sales support.
