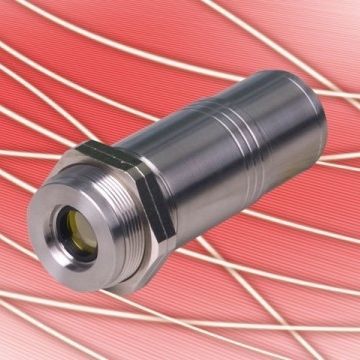

Optical pyrometer PYROSPOT 47
digital4-20 mAIP65

Optical pyrometer - PYROSPOT 47 - DIAS Infrared - digital / 4-20 mA / IP65
Optical pyrometer - PYROSPOT 47 - DIAS Infrared - digital / 4-20 mA / IP65
Add to favorites
Compare this product

Characteristics

Technology
optical
Display
digital
Communication
4-20 mA
Protection level
IP65
Configuration
fixed, compact
Applications
industrial
Other characteristics
stainless steel
Temperature

Max.: 2,500 °C
(4,532 °F)

Min.: -40 °C
(-40 °F)

Dial diameter

0.7 mm
(0 in)

Spectral range

Max.: 14 µm

Min.: 0.8 µm

Response time

5 ms

Description

The digital pyrometers PYROSPOT of series 47 are developed and manufactured in Germany and are suitable for industrial continuous operation. The pyrometers with Ethernet interface are specifically suited for automation solutions. Different temperature and spectral ranges are available. Customized system solutions including hardware and software adjustments are possible at any time. What characterizes the devices of PYROSPOT Series 47? Compact pyrometers with Ethernet interface (100 Mbit/s) Fast response times t95 from 5 ms Different fixed and vario optics available with target sizes starting from 0.7 mm Variants with fiber optics for ambient temperatures up to 250 °C Integrated web server, Modbus-TCP protocol Maximum/minimum value storage Optional LED or laser light or laser light adapter

Catalogs

PYROSPOT DA 47G
PYROSPOT DA 47G
4 Pages
DT 47L
DT 47L
4 Pages
