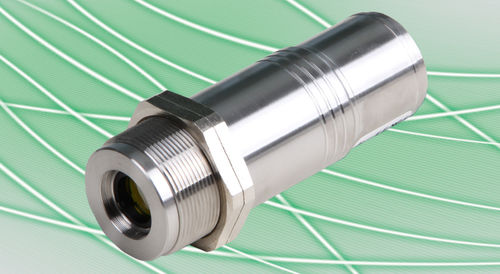

Digital pyrometer PYROSPOT DT 40G

°Cwith LED targeting lightUSB

The digital pyrometers PYROSPOT DT 40G are specifically designed for applications in glass industry. The devices are suitable for temperature measurement from 100 °C to 2500 °C on glass surfaces, float glass and liquid glass. The solid body in stainless steel housing allows usage even under rough environmental conditions. With a fast response time from 60 ms (t95) these pyrometers are also suitable for fast measuring rocesses. Several fixed optic types realize measuring field diameters from 1.6 mm. The standard 4 to 20 mA temperature linear output signal allows easy implementation in existing measurement and control systems. The devices are equipped with integrated, galvanically isolated USB interface on the back. The USB interface simplifies parameterization and data evaluation via software, without needing an additional power supply. The optional integrated LED aiming light enables exact alignment to the measuring object. The LED size is identical to measuring spot size and visible even at high temperatures. Due to direct USB connection parameters like emissivity sub range, response time and data storage can be easily adjusted through the user friendly parameterization and evaluation software PYROSOFT Spot or optional handheld programming device DHP 1040. Typical application areas: • Glass industry • Flat glass • Glass bottle production • Liquid glass • Glass forms
