Digital pyrometer PYROSPOT DGEF 44N

°Cwith laser pointerwith LED targeting light

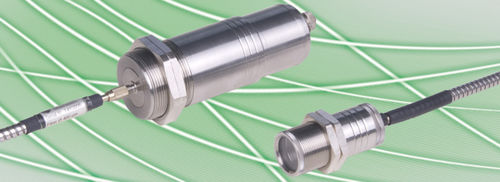

The digital pyrometers PYROSPOT DGEF 44N are specifically designed for industrial purpose. The devices are suitable for temperature measurement from 100 °C on many different surfaces for example metals, ceramics or graphite. The solid body in stainless steel housing with fibre cable and protection window for optics allows usage even under rough environmental conditions. With a fast response time of only 5 ms (t95) these Pyrometers are also suitable for fast measuring processes. The temperature linear standard output signal of 0/4 to 20 mA allows easy implementation in existing measurement and control systems. The DGEF 44N are equipped with a galvanically isolated RS-485 interface, which allows parameterizing and software evaluation even in bus systems. The integrated LED or laser aiming light enables to focus the measuring object exactly. The size of the LED aiming light is identical to the measuring field. Via an optional interface module (RS-485 to USB) parameters like emissivity, sub range, response time and storage can be easily adjusted by using the convenient parameterizing and evaluation software PYROSOFT Spot. The parameters can also be adjusted via RS-485 interface with the optional available handheld programming device DHP 1040.
