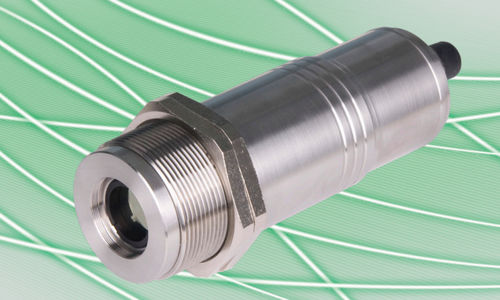

2-wire pyrometer PYROSPOT DT 42L

digital°Cwith laser pointer

The digital pyrometers PYROSPOT DT 42L are especially designed for industrial purpose. The devices are suitable for temperature measurement from –40 °C to 1000 °C of many different nonmetallic or coated metallic surfaces. The solid body in stainless steel housing allows usage even under rough environmental conditions. With a fast response time from 100 ms (t95) these pyrometers are also suitable for fast measuring processes. Several fixed optic types realise measuring field diameters from 5.5 mm. Emissivity can be adjusted directly at the device. The temperature linear standard output signal of 4 to 20 mA allows easy implementation in existing measuring and controlling systems. The optional laser aiming light allows exact alignment to the measuring object. Typical application areas: • Nonmetals • Coated metals • Paper and packaging • Building materials • Food industry • Plastics Features • Digital 2-wire pyrometers • Adjustment of emissivity at the backside of the device • Stainless steel housing
