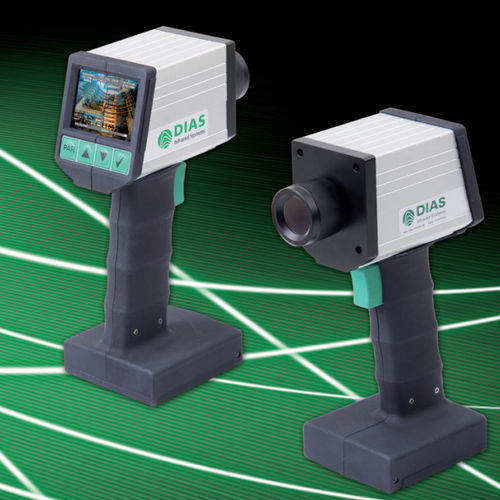

Two-color pyrometer PYROSPOT DG 80NV

TFT graphic display200:1USB

The digital pyrometers of the PYROSPOT series 80 portable are robust handheld devices for the mobile use in the industry. They are suitable for temperature measurements from 200 °C, for example on metals, graphite or ceramic. The color video module enables together with the integrated 2.5" TFT display a very convenient aiming of the pyrometer even at high measurement temperatures. The robust portable pyrometers, that are specifi cally suitable for processes for the winning and working of metals, minimize measurement errors at a very low, not known or varying emissivity. The devices PYROSPOT DG 80NV portable measure temperatures from 200 °C to 2000 °C at short wavelengths within the spectral range from 1.5 µm to 1.8 µm. The pyrometers PYROSPOT DS 80NV portable work at 0.8 µm to 1.1 µm wavelength and enable temperature measurements from 550 °C to 2500 °C. If there are very harsh ambient conditions, where the optics can contaminate or if the measurement fi eld of the pyrometer is not fi lled completely, the ratio pyrometer PYROSPOT DSR 80NV portable is available. It measures temperatures between 500 °C and 2500 °C at a wavelength of 0.7 µm to 1.1 µm. The devices are very fast with response times starting at fi ve milliseconds (t95). All pyrometers have a vario optics up to a distance ratio of 200 : 1 and better . Use the four user controls beneath the TFT display to adjust all important pyrometer parameters. An integrated measured data storage allows the storage of up to 999 data records. Data for evaluation can be transferred to an external computer via the USB interface.
