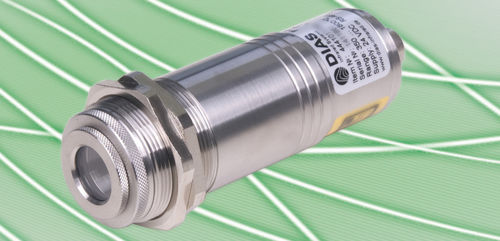

Digital pyrometer PYROSPOT DGE 44N

°Cwith laser pointerwith LED targeting light

The digital pyrometers PYROSPOT PYROSPOT DGE 44N are specifically designed for industrial purpose. The devices are suitable for high temperature measurement from 75 °C on many different metalic surfaces. The solid body in stainless steel housing with protection window for optics allows usage even under rough environmental conditions . With a fast response time of only 5 ms (t95) these pyrometers are also suitable for fast measuring processes. Several fixed or vario optic types realise Target sizes from 1.5 mm. The temperature linear standard output signal of 0/4 to 20 mA allows easy implementation in existing measurement and control systems. The pyrometer are equipped with a galvanically isolated RS-485 interface which allows parameterizing and software evaluation even in bus systems. The integrated LED or laser aiming light enables to focus the measuring object exactly. The size of the LED aiming light is identical to the measuring field. Via optional interface module (RS-485 to USB) parameters like emissivity sub range, response time and storage can be easily adjusted by using the comfortable parameterizing and evaluation software PYROSOFT Spot. The parameters can also be adjusted via RS-485 interface with the optional available handheld programming device DHP 1040. Typical application areas: • Preheating • Tempering • Hardening • Soldering • Rolling • Heat treatment
