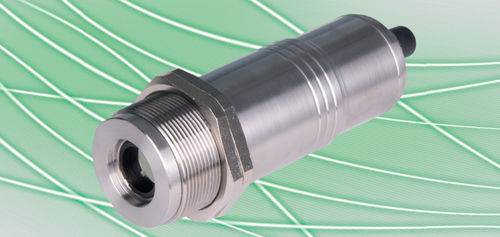

Digital pyrometer PYROSPOT DS 42N

with laser pointer4-20 mArugged

The digital pyrometers PYROSPOT DS 42N and PYROSPOT DG 42N are especially designed for industrial purpose. The devices are suitable for high temperature measurement from 250 °C of many different surfaces for example metals, ceramics or graphite. The solid body in stainless steel housing with protection window for optics allows usage even under rough environmental conditions. With a fast response time of only 10 ms (t95) these pyrometers are also suitable for fast measuring processes. Several fi xed optic types realise measuring fi eld diameters from 1.2 mm. The integrated laser aiming light enables to focus the measuring object exactly. The temperature linear standard output signal of 4 to 20 mA allows easy implementation in existing measuring and controlling systems. Emissivity can be adjusted directly at the device. Typical application areas: • Steemaking • Glass • Ceramics • Furnace • Metal industry
