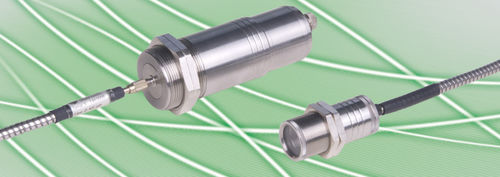

Fiber optic pyrometer PYROSPOT DSF 40N

digital°Cwith laser pointer

The digital pyrometers PYROSPOT DSF 40N and DGF 40N are specifically designed for industrial purposes. The devices are suitable for high temperature measurement from 250 °C on many different surfaces for example metals, ceramics or graphite. The solid body in stainless steel housing with fibre cable and protection window for optics allows usage even under rough environmental conditions. With a fast response time of only 10 ms (t95) these pyrometers are also suitable for fast measuring processes. The vario optics for fibre optical head realizes spot sizes from 0.7 mm diameter. Several Laser rejection filters are applicable. The standard 4 to 20 mA temperature linear output signal allows easy implementation in existing measurement and control systems. The DSF 40N/DGF 40N are equipped with an integrated, galvanically isolated USB interface on the back side. The USB interface simplifies parameterization and data evaluation via software, without needing an additional power supply. The integrated LED or laser aiming light enables to focus the measuring object exactly. The size of the LED aiming light is identical to the measuring field. Due to direct USB connection parameters like emissivity sub range, response time and data storage are all easily adjusted through the user friendly parameterization and evaluation software PYROSOFT Spot or optional handheld programming device DHP 1040. Typical application areas: • Steel industry • Furnace industry • Soldering applications • Ceramic industry • Metal industry
