Digital pyrometer PYROSPOT 54
with laser pointerRS4854-20 mA

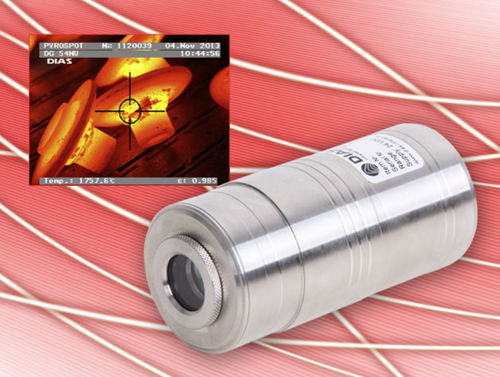

Digital pyrometer - PYROSPOT 54 - DIAS Infrared - with laser pointer / RS485 / 4-20 mA
Digital pyrometer - PYROSPOT 54 - DIAS Infrared - with laser pointer / RS485 / 4-20 mA
Add to favorites
Compare this product

Characteristics

Display
digital
Aim
with laser pointer
Communication
RS485, 4-20 mA, Modbus RTU
Protection level
IP65
Applications
industrial
Other characteristics
high-precision, data logging, with video module, with electrical contact
Temperature

Max.: 3,900 °C
(7,052 °F)

Min.: 200 °C
(392 °F)

Dial diameter

0.7 mm
(0 in)

Spectral range

Max.: 1.86 µm

Min.: 0.55 µm

Response time

2 ms

Description

The digital pyrometer PYROSPOT of series 54 are developed and manufactured in Germany and are suitable for continuous operation in industry and research. Different temperature and spectral ranges are available. Customized system solutions including hardware and software adjustments are possible at any time. What characterizes the devices of PYROSPOT Series 54? Laser aiming light, integrated color video camera or through-lens sighting Ratio pyrometers for nearly emissivity-independant measurement Special pyrometers for temperature measurement in combustion plants, of flames and liquid metals 0/4 to 20 mA interface Galvanically isolated RS-485 interface (Modbus RTU) for integration in existing measurement systems and comfortable data evaluation Maximum/Minimum value storage Galvanically isolated switching output
