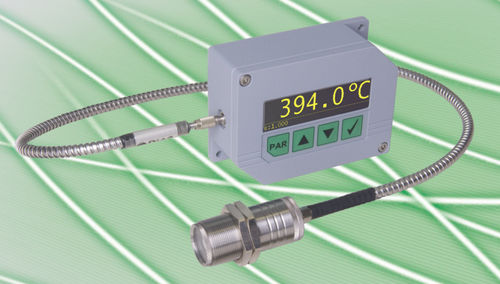

Fiber optic pyrometer PYROSPOT DGEF 11N

digital°Cwith laser pointer

The digital pyrometers PYROSPOT DGEF 11N are specifically designed for industrial purpose. The devices are suitable for temperature measurement from 100 °C on many different surfaces for example metals, ceramics or graphite. The solid body with Fibre optics cable allows usage even under rough environmental conditions. The bright temperature display is visible even over long distance. With a fast response time of only 2 ms (t95) these pyrometers are also suitable for fast measuring processes. The vario or fixed optics for Fibre optical head realizes spot sizes from 1.3 mm diameter. A special vacuum lead through or variants with quartz or sapphire glass are also available. The integrated laser aiming light enables to focus the measuring object exactly. The temperature linear standard output signal of 0/4 to 20 mA allows easy implementation in existing measurement and control systems. The device is equipped with a galvanically isolated RS-485 interface, which allows parameterizing and software evaluation even in bus systems. All parameters are adjustable via push-buttons and display directly on the device. Also by using the convenient parameterising and evaluation software PYROSOFT Spot the parameters can be easily adjusted to the application. Typical application areas: • Steel industry • Kiln engineering • Hardening • Welding • Metal industry Features • Short response times from 2 ms • Vario and fixed optics with measuring field diameter from 1.3 mm • RS-485 interface • Display and keyboard • Applicable up to 250 °C ambient temperature
