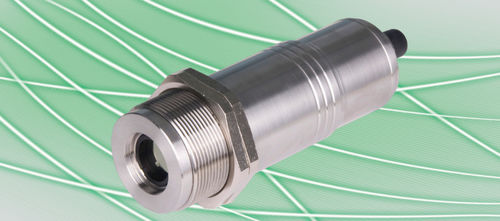

2-wire pyrometer PYROSPOT DT 42G

digitalwith laser pointer4-20 mA

The digital pyrometers PYROSPOT DT 42G are especially designed for applications in glass industry. The devices are suitable for temperature measurement from 100 °C to 2500 °C of glass surfaces, float glass and liquid glass. The solid body in stainless steel housing allows usage even under rough environmental conditions. With a fast response time from 100 ms (t95) these pyrometers are also suitable for fast measuring rocesses. Several fixed optic types realise measuring field diameters from 4.2 mm. Emissivity can be adjusted directly at the backside of the device. The temperature linear standard output signal of 4 to 20 mA allows easy implementation in existing measuring and controlling systems. The optional laser aiming light allows exact alignment to the measuring object. Typical application areas: • Glass industry • Float glass • Glass bottle production • Liquid glass • Glass forms Features • Digital 2-wire pyrometers • Emissivity adjustment at the device • Robust stainless steel housing
