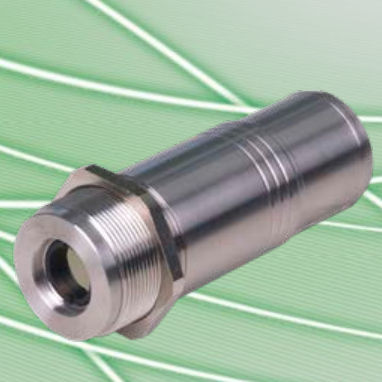

Digital pyrometer PYROSPOT DA 10C

RS485USB4-20 mA

The digital pyrometers PYROSPOT DA 10C and PYROSPOT DT 40C are special instruments for temperature measurement of CO2 containing flames and hot combustion gases in a narrow band spectral range around 4.5 µm or 4.6 µm The solid IP65 housing allows usage even under rough environmental conditions. With a variable response time the pyrometer can be adjusted flexibly to the appropriate application conditions. The universal optics provide an usage in many different installations. The DA 10C pyrometer has an integrated through-the-lens sighting, which allows it to be conveniently adjusted to the measured object. The temperature linear standard output signal of 0/4 to 20 mA (DA 10C) or 4 mA to 20 mA (DT 40C) allows easy implementation in measurement and control systems. The DA 10C is equipped with a galvanically isolated RS-485 interface that provides the data aquisition even in bus systems. The DT 40C has a USB interface for parameterization. All parameters can be adjusted optimally with the extensive parameterization and evaluation software PYROSOFT Spot. Typical application areas of the pyrometers are: • Temperature measurement of combustion and smoke gasses • Measurement of flame temperatures • Firing technique
