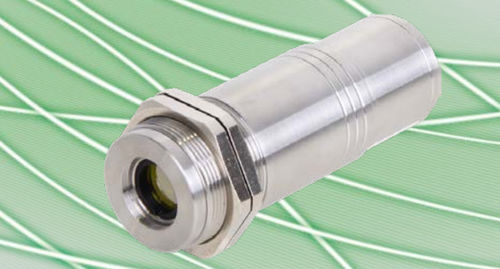

Digital pyrometer PYROSPOT DA 44MF

with LED targeting lightRS485USB

The digital pyrometers PYROSPOT DA 44MF are specifically designed for industrial applications. The devices are suitable for temperature measurement from 50 °C to 1000 °C within the midwave infrared (MWIR) between 3.5 µm and 4.0 µm. The solid body in stainless steel housing allows usage even under rough environmental conditions. With a fast response time of only 5 ms (t95) these pyrometers are also suitable for fast measuring processes. Several fixed optic types realise measuring field diameters from 1.6 mm. The temperature linear standard output signal of 0/4 to 20 mA allows easy implementation in existing measurement and control systems. The devices are equipped with a galvanically isolated RS-485 interface, which allows parameterizing and software evaluation even in bus systems. The connection to local area networks can be supported by an Ethernet interface box. The optional integrated LED aiming light allows exact alignment to the measuring object. The LED size is identical to measuring spot size and visible even at high temperatures. Via an optional interface module (RS-485 to USB) parameters like emissivity, sub range, response time and storage can be easily adjusted by using the convenient parameterizing and evaluation software PYROSOFT Spot. The parameters can also be adjusted via RS-485 interface with the optional available handheld programming device DHP 1040 or the Ethernet Interface-Box DCUIoP. Typical application areas: • Semiconductor industry • Metal industry • Measurement through combustion gases • Furnace industry
