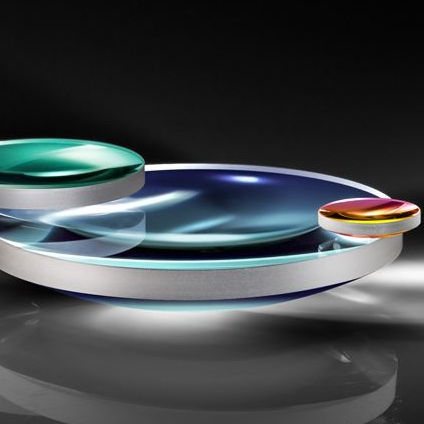

Plano-convex lens element #65-500

BK7magnesium fluoride (MgF2)NIR

TECHSPEC® 633nm Laser Line Coated Plano-Convex (PCX) Lenses are designed for maximum throughput at the specified laser wavelength. These lenses are ideal for collecting and focusing light from laser sources and their corresponding harmonics. With a maximum reflection of <0.25% per surface at the design wavelength, the lenses will provide superior transmission in applications utilizing multiple optical components. TECHSPEC ® 633nm Laser Line Coated Plano-Convex (PCX) Lenses are available Laser V-Coated in a range of other wavelengths: 405nm, 532nm, 785nm, 980nm, 1064nm, and 1550nm. Other coating options are available, including uncoated, MgF2, VIS 0°, VIS-NIR, NIR I, and NIR II. <0.25% Reflection at 633nm for HeNe Applications BBAR Coating Options Also Available: uncoated, MgF2, VIS 0°, VIS-NIR, NIR I, NIR II 405nm, 532nm, 633nm, 785nm, 980nm, 1064nm, and 1550nm V-Coated Options Offered Common Specifications Bevel: Protective as needed Coating: Laser V-Coat (633nm) Surface Quality: 40-20 Power (P-V) @ 632.8nm: 1.5λ Irregularity (P-V) @ 632.8nm: λ/4 Focal Length Tolerance (%): ±1 Design Wavelength DWL (nm): 633 Damage Threshold, By Design: 5 J/cm2 @ 633nm, 10ns Need different specs or modifications? Edmund Optics offers comprehensive custom manufacturing services for optical and imaging components tailored to your specific application requirements. Whether in the prototyping phase or preparing for full-scale production, we provide flexible solutions to meet your needs. Our experienced engineers are here to assist—from concept to completion. Our capabilities include: Custom dimensions, materials, coatings, and more
