Dual-wavelength waveplate #3835

Product Description

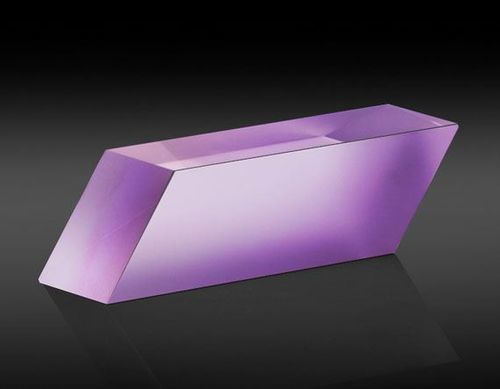

TECHSPEC Fresnel Rhomb Retarders are designed for 532 nm and 1064 nm operation. Using a precise internal angle, each internal reflection produces part of the retardance so that the cumulative effect yields a total λ/4 retardance. Each design is available with VIS 0° or NIR II coatings to ensure efficient transmission across the target wavelength band. These retarders exhibit less than 2% retardance variation over the specified bandwidth and are optimized for diode and fiber-based laser applications.

Key Features

• Broadband performance with <2% retardance variation across the design band
• Design wavelengths: 532 nm and 1064 nm
• Coating options: VIS 0° or NIR II for optimized transmission
• Available apertures: 12.7 mm and 25.4 mm
• Provides λ/4 total retardance via cumulative internal reflections

Typical Applications

• Diode laser systems
• Fiber-optic polarization control and manipulation
• Broadband polarization retardation tasks across VIS and NIR ranges

Technical Specifications

• Retardance: λ/4 (total quarter-wave retardance from internal reflections)
• Retardance variation: <2% across specified operational bandwidth
• Design wavelengths: 532 nm, 1064 nm
• Coating options: VIS 0° or NIR II (selected per design wavelength)
• Mechanical sizes (apertures): 12.7 mm and 25.4 mm
• Optimized for diode and fiber applications
