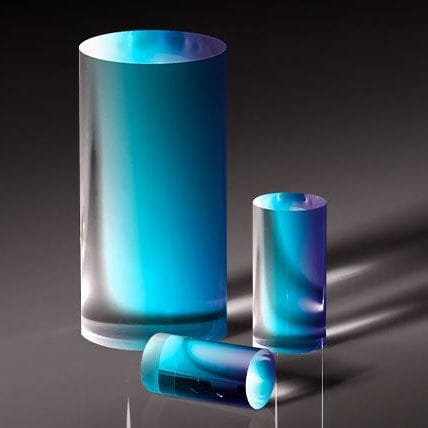

Rod lens element #45-943 BK7optical
Add to favorites
Compare this product
Characteristics
- Geometry/curvature
- rod
- Material
- BK7
- Applications
- optical
- Diameter
Max.: 10 mm
(0.39 in)Min.: 1 mm
(0.04 in)- Wavelength
Max.: 2,200 nm
Min.: 250 nm
Description
TECHSPEC® Rod Lenses are polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Collimated light passing through the diameter of the rod lens will be focused into a line. TECHSPEC ® Rod Lenses are offered in diameters ranging from 1mm to 10mm.
Focuses Collimated Light into a Line
Available in Diameters as Small as 1mm
Common Specifications
Length Tolerance (mm):
+0/-0.1
Substrate:
N-BK7
Coating:
Uncoated
Wavelength Range (nm):
350 - 2200
Surface Quality:
40-20
