Achromatic waveplate #4537

polymer

Overview Ultra-Thin NIR Achromatic Polymer Retarders feature an optically fused, adhesive-free multi-layer polymer construction that delivers high temperature resistance, high transmission and an ultra-thin form factor. Available in λ/2 and λ/4 formats, these retarders are supplied uncoated or with an AR coating and maintain a retardance tolerance of λ/100 across the NIR range. They are intended for NIR imaging, analytical instrumentation, OEM integration and other applications requiring a compact footprint.

Highlights

• Ultra-thin ≤0.55 mm substrates suitable for OEM integration
• Wavelength options: 700–1100 nm (coated) and 700–1550 nm (uncoated)
• Wide acceptance angle tolerance: ±10°

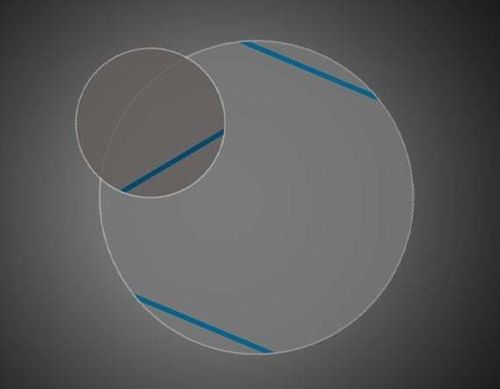

Additional information Slow axis is marked in blue on the protective film and additionally indicated by a dot on the part to simplify alignment during installation.

Technical specifications

• Construction: multi-layer polymer stack, optically fused, adhesive-free
• Retarder types & thickness: λ/2 = 0.35 mm; λ/4 = 0.55 mm
• Retardance tolerance: λ/100 across the NIR range
• Wavelength ranges: uncoated 700–1550 nm; coated (AR) optimized for improved transmission 700–1100 nm
• Acceptance angle tolerance: ±10°
• Form factor: ultra-thin substrates (≤0.55 mm) for compact OEM designs
• Coating: available uncoated or with AR coating (coated optimized for 700–1100 nm)
• Temperature performance: enhanced high-temperature resistance due to adhesive-free, optically fused construction
• Transmission: high transmission within specified NIR ranges
• Identification: slow axis marked on protective film and with a dot on the part
