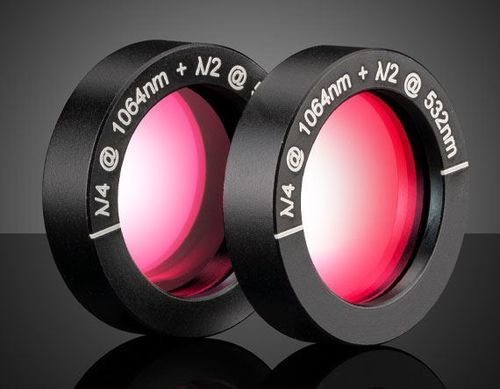

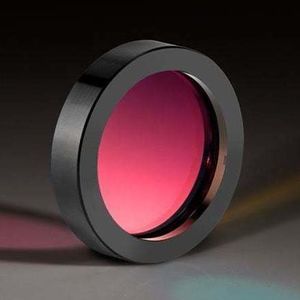

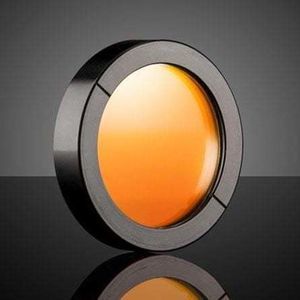

Quartz waveplate #4354

dual-wavelengthfor linear polarization conversion

Overview Dual-wavelength quartz waveplates provide quarter-wave (λ/4) retardance at a primary wavelength and half-wave (λ/2) retardance at a secondary wavelength using crystalline quartz substrates and precision thickness control. They include anti-reflective (AR) coatings and are available in multiple-order designs with high laser damage threshold (LDT), suitable for integration in high-power laser systems.

Features

• λ/4 and λ/2 retardance for harmonic separation and polarization management
• Designed for Nd:YAG (532/1064), Yb:YAG (515/1030) and Ti:Sapphire (400/800)
• Multiple-order and thin-plate design options
• Anti-reflective (AR) coatings optimized for the wavelength pairs
• High laser damage threshold (LDT) for high-power operation
• Mounted in 25.4 mm black anodized aluminum ring with 18 mm clear aperture

Technical specifications

• Substrate: crystalline quartz
• Retardance: λ/4 at primary wavelength; λ/2 at secondary wavelength
• Designed wavelength pairs: Nd:YAG 532 nm & 1064 nm; Yb:YAG 515 nm & 1030 nm; Ti:Sapphire 400 nm & 800 nm
• Mount: 25.4 mm black anodized aluminum ring
• Clear aperture: 18 mm
• Coating: anti-reflective (AR) optimized for specified pairs
• High laser damage threshold suitable for high-power lasers
• Available in multiple-order designs

Applications

• Harmonic separation and beam routing in frequency-conversion systems
• Polarization control to maximize second-harmonic generation (SHG) and conversion efficiency
• Integration in dual-wavelength laser sources and pump-probe setups
• High-power laser processing and scientific laser systems
