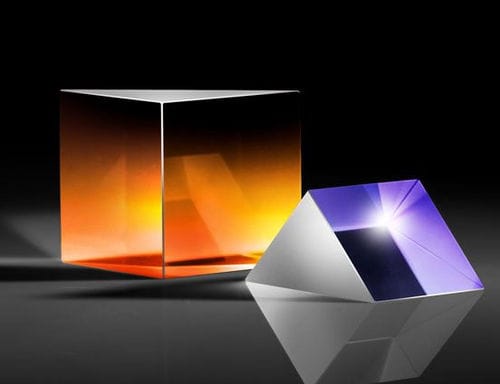

Fused silica prism TECHSPEC® Nd:YAG

laser

TECHSPEC® Nd:YAG Laser Line λ/20 Fused Silica Right Angle Prisms offer a combination of precision surface flatness and guaranteed laser damage threshold AR coatings. These prisms are ideal for beam steering with minimal wavefront distortion due to λ/20 surface flatness on all faces. A ±15 arcsecond angular tolerance ensures consistent alignment for volume integration. TECHSPEC® Nd:YAG Laser Line λ/20 Fused Silica Right Angle Prisms are designed for transmission through the anti-reflection coated legs of the prism, resulting in a 90° turn in beam direction. A vertically integrated manufacturing process ensures these prisms are easily scaled for custom requests. Common Specifications Dimensional Tolerance (mm): +0.00/-0.10 Bevel: Protective as needed Clear Aperture (%): 90 Angle Tolerance (arcsec): ±15 Substrate: Fused Silica (Corning 7980) Surface Quality: 20-10 Pyramid Tolerance (arcmin): ±1 Image Orientation: Left-Handed Surface Flatness (P-V): λ/20 Need different specs or modifications? Edmund Optics offers comprehensive custom manufacturing services for optical and imaging components tailored to your specific application requirements. Whether in the prototyping phase or preparing for full-scale production, we provide flexible solutions to meet your needs. Our experienced engineers are here to assist—from concept to completion. Our capabilities include: Custom dimensions, materials, coatings, and more High-precision surface quality and flatness Tight tolerances and complex geometries Scalable production—from prototype to volume
