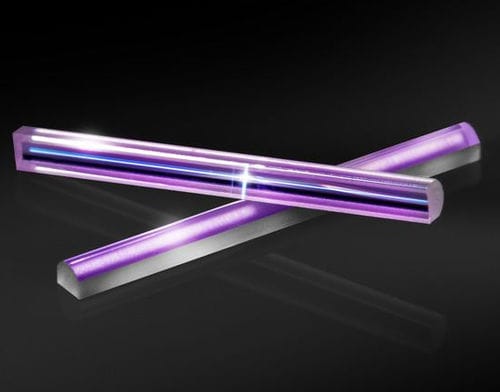

Fast-axis collimator #87-3 series

laser diode

Fast Axis Collimators are compact, high performance aspheric cylindrical lenses designed for beam shaping or laser diode collimation applications. The aspheric cylindrical designs and high numerical apertures allow for uniform collimation of the entire output of a laser diode while maintaining high beam quality. Fast Axis Collimators feature greater than 99% transmission across the designated spectral range, and are available in a variety of focal lengths. Aspheric Cylindrical Lens Designs for Fast Axis Collimation Standard AR Coating for 790 – 990nm Ideal for Laser Diode Collimation Slow Axis Collimators Also Available Common Specifications Height Tolerance (mm): ±0.05 Length (mm): 12.00 Length Tolerance (mm): ±0.05 Width Tolerance (mm): ±0.01 Substrate: S-TIH53 Coating: BBAR (790-990nm) Wavelength Range (nm): 790 - 990 Coating Specification: Ravg 99
