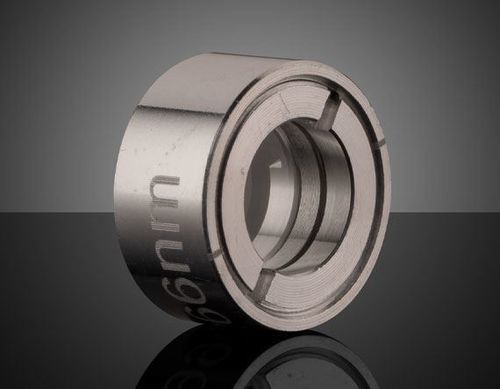

Dual-wavelength waveplate #4522

zero order

Overview
DUV vacuum-compatible waveplates are mounted in an unanodized aluminum housing and feature adhesive-free construction to minimize outgassing in vacuum environments. They are optimized for >99.8% transmission at the designed wavelengths of 257 nm or 266 nm. Available retardance options include λ/2 (half-wave) and λ/4 (quarter-wave). Constructed as zero-order waveplates to provide superior retardation tolerance, increased bandwidth and reduced temperature sensitivity. The fast axis is marked on the mount edge for easy identification and system integration. These waveplates are suitable for life-science and lithography applications that require vacuum conditions.

Key Features

• Designed for deep-UV wavelengths: 257 nm and 266 nm
• Optimized for >99.8% transmission at the designed wavelength
• Adhesive-free construction for low outgassing in vacuum-compatible applications
• Unanodized aluminum mount to avoid vacuum contamination from anodization
• Available retardances: λ/2 (half-wave) and λ/4 (quarter-wave)
• Zero-order construction for superior retardation tolerance
• Increased bandwidth and reduced sensitivity to temperature changes
• Fast axis marked on the mount edge for straightforward system alignment
• Targeted applications: life-science instrumentation and lithography in vacuum environments

Technical specifications

• Designed wavelengths: 257 nm or 266 nm
• Transmission: >99.8% at the designed wavelength
• Retardance options: λ/2 (half-wave), λ/4 (quarter-wave)
• Mount: Unanodized aluminum (adhesive-free construction)
• Construction: Zero-order waveplate
• Marked feature: Fast axis indicated on mount edge
• Performance characteristics: Superior retardation tolerance; increased bandwidth; lower thermal sensitivity
