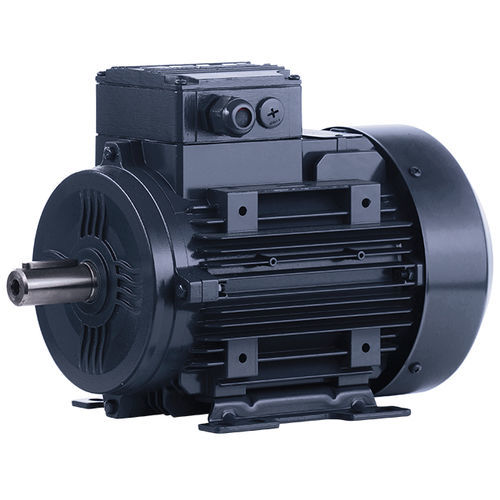

3-phase motor 2EL063M seriesinduction400 V460 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- induction
- Voltage
- 400 V, 460 V, 230 V
- Protection class
- IP55
- Configuration
- aluminum, squirrel cage
- Efficiency classes
- IE2
- Number of poles
- 4-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-torque
- Power
Min.: 0.12 kW
(0.163 hp)Max.: 0.29 kW
(0.394 hp)- Intensity
Min.: 0.38 A
Max.: 1.16 A
- Torque
0.61 Nm, 0.82 Nm, 0.85 Nm, 1.23 Nm
(0.4499 ft.lb, 0.6048 ft.lb, 0.6269 ft.lb, 0.9072 ft.lb)- Rotational speed
Min.: 1,385 rpm
(8,702.21 rad.min-1)Max.: 3,395 rpm
(21,331.41 rad.min-1)- Diameter
119 mm
(4.69 in)- Operating temperature
Min.: -15 °C
(5 °F)Max.: 40 °C
(104 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 063
Frequency 50 Hz
Moment of Inertia 0.00012 kg.m²
Load 4/4 3/4 1/2
Efficiency 67.5 % 67.5 % 67.5 %
Power Factor 0.77
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 51 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.15
Direction of Rotation Clockwise
Motor Weight 3.80 kg
Bearings DS (6201 ZZ) NS (6201 ZZ)
