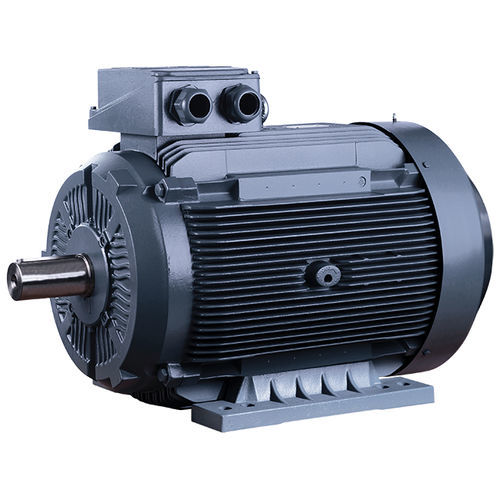

Induction motor 3EG280 series3-phase400 V460 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, 3-phase
- Voltage
- 400 V, 460 V, 690 V
- Configuration
- cast iron, squirrel cage
- Protection class
- IP55
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 6-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
Max.: 104 kW
(141.4 hp)Min.: 45 kW
(61.18 hp)- Intensity
Max.: 156 A
Min.: 73.3 A
- Torque
Max.: 578.8 Nm
(426.900972 ft.lb)Min.: 240.3 Nm
(177.236184 ft.lb)- Rotational speed
Max.: 3,575 rpm
(22,462.3875 rad.min-1)Min.: 989 rpm
(6,214.0703 rad.min-1)- Diameter
547 mm
(21.54 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 280
Frequency 50 Hz
Moment of Inertia 0.79000 kg.m²
Load 4/4 3/4 1/2
Efficiency 94.7 % 94.7 % 94.7 %
Power Factor 0.90
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 76 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.20
Direction of Rotation Clockwise
Motor Weight 560 kg
Bearings DS (6315) NS (6315)
