Induction motor 2EL071M series
3-phase400 V460 V

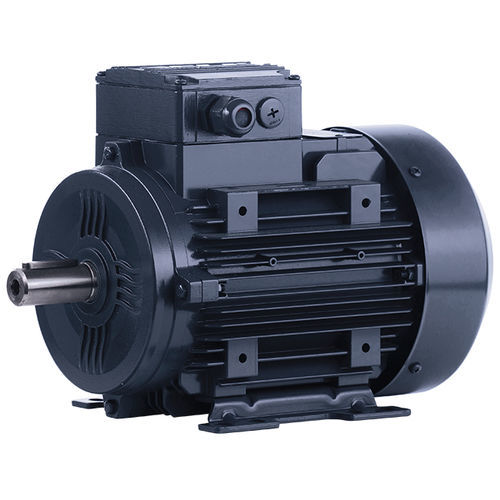

Induction motor - 2EL071M series - ELK Motor - 3-phase / 400 V / 460 V
Induction motor - 2EL071M series - ELK Motor - 3-phase / 400 V / 460 V
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 460 V, 380 V
Configuration
aluminium, squirrel cage
Protection class
IP55
Efficiency classes
IE2
Number of poles
4-pole, 6-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-torque
Power

Max.: 0.64 kW
(0.87 hp)

Min.: 0.18 kW
(0.24 hp)

Intensity

Max.: 2.33 A

Min.: 0.59 A

Torque

Max.: 2.59 Nm
(1.910286 ft.lb)

Min.: 1.26 Nm
(0.929328 ft.lb)

Rotational speed

Max.: 3,400 rpm
(21,362.83 rad.min-1)

Min.: 920 rpm
(5,780.5305 rad.min-1)

Diameter

137 mm
(5.39 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 071 Frequency 50 Hz Moment of Inertia 0.00030 kg.m² Load 4/4 3/4 1/2 Efficiency 74.2 % 74.2 % 74.2 % Power Factor 0.80 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000m Methods of Cooling IC 411 Sound Pressure Level 54 dB(A) Vibration Class A Duty Cycl e S1 (Continuous Running Duty) Service Factor 1.15 Direction of Rotation Clockwise Motor Weight 6.00 kg Bearings DS (6202 ZZ) NS (6202 ZZ)
