Induction motor 3EG200L series
3-phase400 V460 V

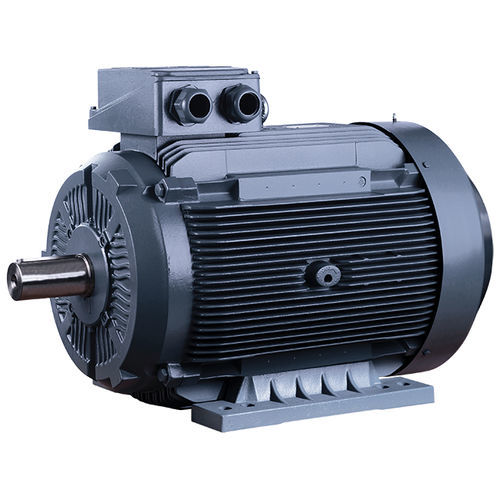

Induction motor - 3EG200L series - ELK Motor - 3-phase / 400 V / 460 V
Induction motor - 3EG200L series - ELK Motor - 3-phase / 400 V / 460 V
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 460 V, 690 V
Configuration
cast iron, squirrel cage
Protection class
IP55
Efficiency classes
IE3
Number of poles
4-pole, 6-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
high-efficiency, high-torque
Power

Max.: 42.9 kW
(58.33 hp)

Min.: 18.5 kW
(25.15 hp)

Intensity

Max.: 62.6 A

Min.: 21 A

Torque

96.46 Nm, 119 Nm, 194.2 Nm, 214.8 Nm
(71.145245 ft.lb, 87.769896 ft.lb, 143.234569 ft.lb, 158.42835 ft.lb)

Rotational speed

Max.: 3,565 rpm
(22,399.5556 rad.min-1)

Min.: 977 rpm
(6,138.672 rad.min-1)

Diameter

396 mm
(15.59 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 200 Frequency 50 Hz Moment of Inertia 0.28413 kg.m² Load 4/4 3/4 1/2 Efficiency 93.6 % 93.6 % 93.6 % Power Factor 0.85 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 65 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor 1.20 Direction of Rotation Clockwise Motor Weight 258 kg Bearings DS (6312 ZZ) NS (6212 ZZ)
