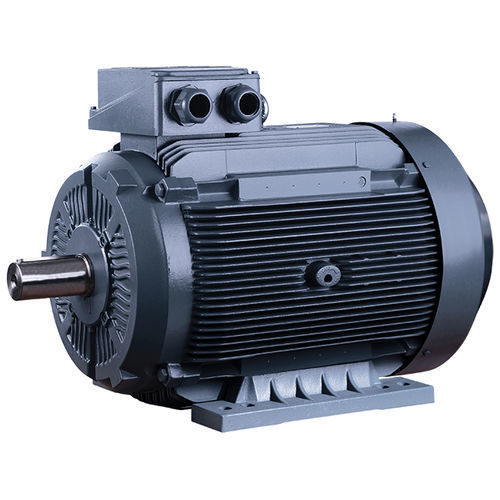

Induction motor 3EG315 series3-phase400 V690 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, 3-phase
- Voltage
- 400 V, 690 V
- Configuration
- cast iron, squirrel cage
- Protection class
- IP55
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 6-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
Max.: 200 kW
(271.92 hp)Min.: 75 kW
(101.97 hp)- Intensity
Max.: 341 A
Min.: 78.52 A
- Torque
Max.: 1,542 Nm
(1,137.320834 ft.lb)Min.: 352 Nm
(259.621877 ft.lb)- Rotational speed
Max.: 2,984 rpm
(18,749.025 rad.min-1)Min.: 991 rpm
(6,226.6366 rad.min-1)- Diameter
622 mm
(24.49 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 315
Frequency 50 Hz
Moment of Inertia 1.60000 kg.m²
Load 4/4 3/4 1/2
Efficiency 95.4 % 95.4 % 95.4 %
Power Factor 0.91
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 77 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.20
Direction of Rotation Clockwise
Motor Weight 870 kg
Bearings DS (6316) NS (6316)
