Induction motor 3EL063M series
3-phase400 V460 V

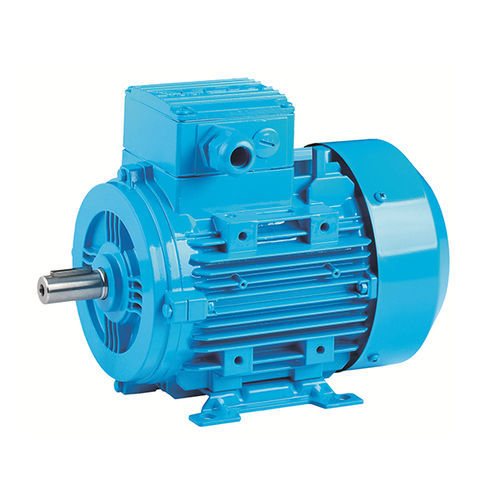

Induction motor - 3EL063M series - ELK Motor - 3-phase / 400 V / 460 V
Induction motor - 3EL063M series - ELK Motor - 3-phase / 400 V / 460 V
Induction motor - 3EL063M series - ELK Motor - 3-phase / 400 V / 460 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 460 V, 380 V
Configuration
aluminium, squirrel cage
Protection class
IP55
Efficiency classes
IE3
Number of poles
4-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-torque
Power

Max.: 0.29 kW
(0.39 hp)

Min.: 0.12 kW
(0.16 hp)

Intensity

Max.: 1.13 A

Min.: 0.36 A

Torque

0.61 Nm, 0.82 Nm, 0.85 Nm, 1.22 Nm
(0.449913 ft.lb, 0.604801 ft.lb, 0.626928 ft.lb, 0.899826 ft.lb)

Rotational speed

1,405 rpm, 1,695 rpm, 1,705 rpm, 2,800 rpm, 3,400 rpm
(8,827.8754 rad.min-1, 10,649.9991 rad.min-1, 10,712.8309 rad.min-1, 17,592.9189 rad.min-1, 21,362.83 rad.min-1)

Diameter

119 mm
(4.69 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position TOP Frame Size 063 Frequency 50 Hz Moment of Inertia 0.00012 kg.m² Load 4/4 3/4 1/2 Efficiency 70.0 % 70.0 % 70.0 % Power Factor 0.77 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 51 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor 1.20 Direction of Rotation Clockwise Motor Weight 3.80 kg Bearings DS (6201 ZZ) NS (6201 ZZ)
