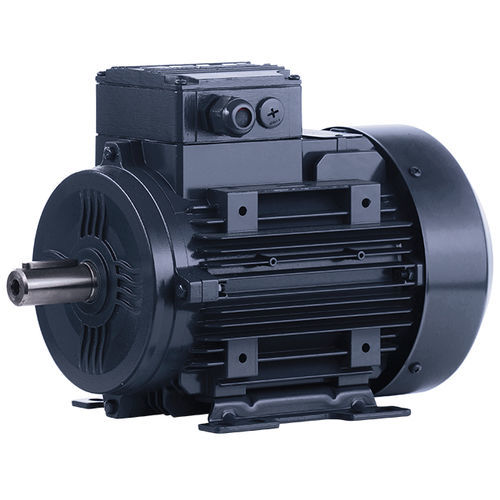

Induction motor 3EL090 series3-phase400 V460 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, 3-phase
- Voltage
- 400 V, 460 V, 380 V
- Configuration
- aluminium, squirrel cage
- Protection class
- IP55
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 6-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
Max.: 2.55 kW
(3.47 hp)Min.: 0.75 kW
(1.02 hp)- Intensity
Max.: 7.36 A
Min.: 1.93 A
- Torque
Max.: 11.2 Nm
(8.260696 ft.lb)Min.: 4.94 Nm
(3.643557 ft.lb)- Rotational speed
Max.: 3,490 rpm
(21,928.3167 rad.min-1)Min.: 940 rpm
(5,906.1942 rad.min-1)- Diameter
176 mm
(6.93 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 090
Frequency 50 Hz
Moment of Inertia 0.00354 kg.m²
Load 4/4 3/4 1/2
Efficiency 78.9 % 78.9 % 78.9 %
Power Factor 0.70
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 46 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.20
Direction of Rotation Clockwise
Motor Weight 15.0 kg
Bearings DS (6205 ZZ) NS (6205 ZZ)
