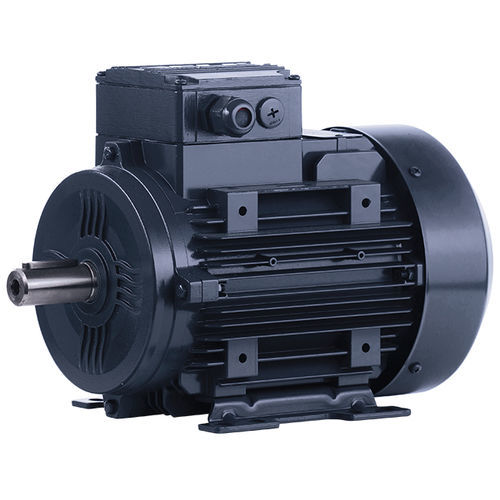

Induction motor 3EL132 series3-phase400 V460 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, 3-phase
- Voltage
- 400 V, 460 V, 690 V
- Configuration
- aluminium, squirrel cage
- Protection class
- IP55
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 6-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
Max.: 8.7 kW
(11.83 hp)Min.: 3 kW
(4.08 hp)- Intensity
Max.: 14.4 A
Min.: 3.78 A
- Torque
Max.: 54.4 Nm
(40.123381 ft.lb)Min.: 17.83 Nm
(13.150733 ft.lb)- Rotational speed
Max.: 3,535 rpm
(22,211.0601 rad.min-1)Min.: 965 rpm
(6,063.2738 rad.min-1)- Diameter
257 mm
(10.12 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 132
Frequency 50 Hz
Moment of Inertia 0.01732 kg.m²
Load 4/4 3/4 1/2
Efficiency 89.2 % 89.2 % 89.2 %
Power Factor 0.90
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 67 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.20
Direction of Rotation Clockwise
Motor Weight 44.0 kg
Bearings DS (6208 ZZ) NS (6208 ZZ)
