Induction motor 3EL100L series
3-phase400 V460 V

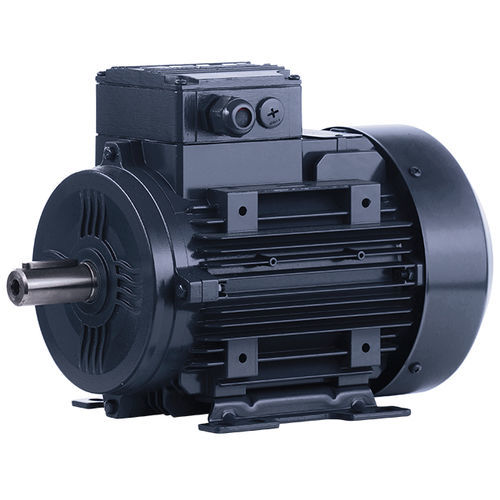

Induction motor - 3EL100L series - ELK Motor - 3-phase / 400 V / 460 V
Induction motor - 3EL100L series - ELK Motor - 3-phase / 400 V / 460 V
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 460 V, 380 V
Configuration
aluminium, squirrel cage
Protection class
IP55
Efficiency classes
IE3
Number of poles
4-pole, 6-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency, high-torque
Power

Max.: 3.48 kW
(4.73 hp)

Min.: 1.5 kW
(2.04 hp)

Intensity

Max.: 10.8 A

Min.: 3.45 A

Torque

9.85 Nm, 14.49 Nm, 15 Nm, 19.76 Nm
(7.264987 ft.lb, 10.687276 ft.lb, 11.063432 ft.lb, 14.574228 ft.lb)

Rotational speed

Max.: 3,495 rpm
(21,959.7326 rad.min-1)

Min.: 955 rpm
(6,000.442 rad.min-1)

Diameter

193 mm
(7.6 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 100 Frequency 50 Hz Moment of Inertia 0.00450 kg.m² Load 4/4 3/4 1/2 Efficiency 87.1 % 87.1 % 87.1 % Power Factor 0.89 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 62 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor 1.20 Direction of Rotation Clockwise Motor Weight 23.0 kg Bearings DS (6206 ZZ) NS (6206 ZZ)
