Induction motor 3EG180 series
3-phase400 V460 V

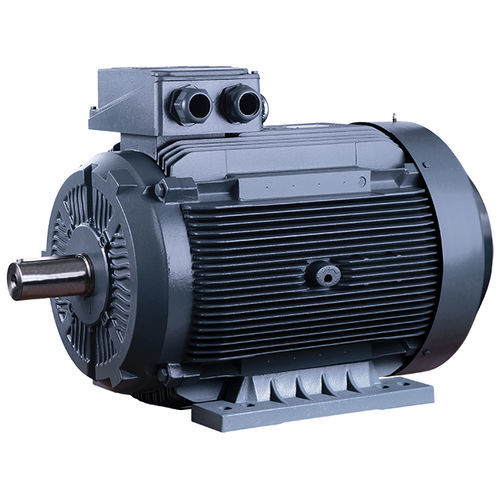

Induction motor - 3EG180 series - ELK Motor - 3-phase / 400 V / 460 V
Induction motor - 3EG180 series - ELK Motor - 3-phase / 400 V / 460 V
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 460 V, 690 V
Configuration
cast iron, squirrel cage
Protection class
IP55
Efficiency classes
IE3
Number of poles
4-pole, 6-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency, high-torque
Power

Max.: 25.5 kW
(34.67 hp)

Min.: 15 kW
(20.39 hp)

Intensity

Max.: 41.4 A

Min.: 17.8 A

Torque

71.05 Nm, 119.8 Nm, 142.9 Nm, 146.9 Nm
(52.403791 ft.lb, 88.359945 ft.lb, 105.397631 ft.lb, 108.34788 ft.lb)

Rotational speed

Max.: 3,545 rpm
(22,273.8919 rad.min-1)

Min.: 975 rpm
(6,126.1057 rad.min-1)

Diameter

348 mm
(13.7 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 180 Frequency 50 Hz Moment of Inertia 0.06299 kg.m² Load 4/4 3/4 1/2 Efficiency 92.7 % 92.7 % 92.7 % Power Factor 0.90 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 70 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor 1.20 Direction of Rotation Clockwise Motor Weight 178 kg Bearings DS (6310 ZZ) NS (6210 ZZ)
