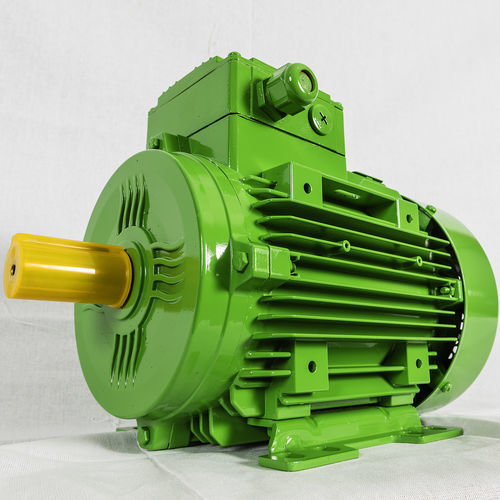

3-phase motor 4EL080M series
induction400 V230 V

3-phase motor
3-phase motor
3-phase motor
3-phase motor
3-phase motor
3-phase motor
Add to favorites
Compare this product


Characteristics

AC/DC
3-phase
Type
induction
Voltage
400 V, 230 V
Protection class
IP55
Configuration
aluminum, squirrel cage
Efficiency classes
IE4
Number of poles
2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency, high-torque
Power

0.75 kW, 1.1 kW
(1.02 hp, 1.496 hp)

Intensity

1.56 A, 2.07 A, 2.19 A, 3.79 A

Torque

2.49 Nm, 3.65 Nm
(1.8365 ft.lb, 2.6921 ft.lb)

Rotational speed

2,875 rpm, 2,880 rpm
(18,064.16 rad.min-1, 18,095.57 rad.min-1)

Diameter

155 mm
(6.1 in)

Operating temperature

Min.: -15 °C
(5 °F)

Max.: 40 °C
(104 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 080 Frequency 50 Hz Moment of Inertia 0.00124 kg.m² Load 4/4 3/4 1/2 Efficiency 83.5% 83.5% 83.5% Power Factor 0.83 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 59 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor 1.25 Direction of Rotation Clockwise Motor Weight 11.0 kg Bearings DS (6204 ZZ ) NS (6204 ZZ )
