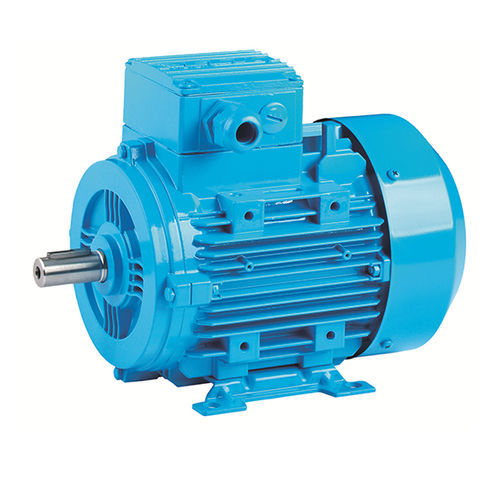

Induction motor 4EL112M2D3-phase400 V690 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, 3-phase
- Voltage
- 400 V, 690 V
- Configuration
- aluminium, squirrel cage
- Protection class
- IP55
- Efficiency classes
- IE4
- Number of poles
- 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
4 kW
(5.44 hp)- Intensity
4.21 A, 7.3 A
- Torque
13 Nm
(9.588308 ft.lb)- Rotational speed
2,940 rpm
(18,472.5648 rad.min-1)- Diameter
215 mm
(8.46 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 112
Frequency 50 Hz
Moment of Inertia 0.00734 kg.m²
Load 4/4 3/4 1/2
Efficiency 90.0 % 90.0 % 90.0 %
Power Factor 0.88
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 70 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.25
Direction of Rotation Clockwise
Motor Weight 32.5 kg
BearingsDS (6206 ZZ) NS (6206 ZZ)
