Induction motor 4EL160 series
3-phase400 V690 V

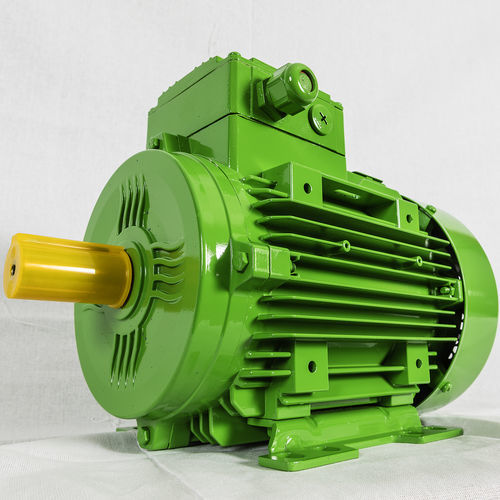

Induction motor - 4EL160 series - ELK Motor - 3-phase / 400 V / 690 V
Induction motor - 4EL160 series - ELK Motor - 3-phase / 400 V / 690 V
Induction motor - 4EL160 series - ELK Motor - 3-phase / 400 V / 690 V - image - 2
Induction motor - 4EL160 series - ELK Motor - 3-phase / 400 V / 690 V - image - 3
Induction motor - 4EL160 series - ELK Motor - 3-phase / 400 V / 690 V - image - 4
Induction motor - 4EL160 series - ELK Motor - 3-phase / 400 V / 690 V - image - 5
Add to favorites
Compare this product

Characteristics

Type
induction, 3-phase
Voltage
400 V, 690 V
Configuration
aluminium, squirrel cage
Protection class
IP55
Efficiency classes
IE4
Number of poles
4-pole, 2-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency, high-torque
Power

11 kW, 15 kW, 18.5 kW
(14.96 hp, 20.39 hp, 25.15 hp)

Intensity

18.9 A, 21 A, 25.6 A, 28.9 A, 31.4 A

Torque

35.6 Nm, 48.6 Nm, 59.8 Nm, 71.5 Nm, 97.5 Nm
(26.257213 ft.lb, 35.84552 ft.lb, 44.106217 ft.lb, 52.735694 ft.lb, 71.91231 ft.lb)

Rotational speed

1,470 rpm, 1,475 rpm, 2,950 rpm, 2,955 rpm
(9,236.2824 rad.min-1, 9,267.6983 rad.min-1, 18,535.3967 rad.min-1, 18,566.8126 rad.min-1)

Diameter

316 mm
(12.44 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 160 Frequency 50 Hz Moment of Inertia 0.03913 kg.m² Load 4/4 3/4 1/2 Efficiency 92.6 % 92.6 % 92.6 % Power Factor 0.91 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 74 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor 1.25 Direction of Rotation Clockwise Motor Weight 89.0 kg Bearings DS (6309 ZZ) NS (6209 ZZ)
