Cardboard baling press HBA-150-110125
for paperfor plasticsfor textiles

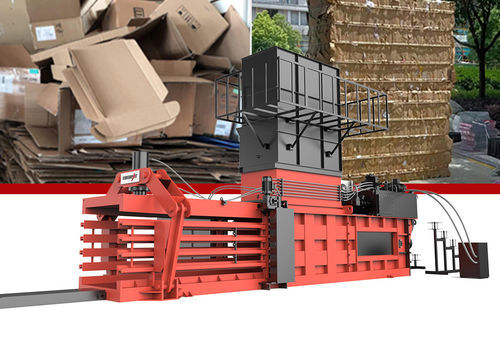

Cardboard baling press - HBA-150-110125 - ENERPAT AMERICA - for paper / for plastics / for textiles
Cardboard baling press - HBA-150-110125 - ENERPAT AMERICA - for paper / for plastics / for textiles
Cardboard baling press - HBA-150-110125 - ENERPAT AMERICA - for paper / for plastics / for textiles - image - 2
Cardboard baling press - HBA-150-110125 - ENERPAT AMERICA - for paper / for plastics / for textiles - image - 3
Cardboard baling press - HBA-150-110125 - ENERPAT AMERICA - for paper / for plastics / for textiles - image - 4
Cardboard baling press - HBA-150-110125 - ENERPAT AMERICA - for paper / for plastics / for textiles - image - 5
Add to favorites
Compare this product
Go to the ENERPAT AMERICA website for more information

Characteristics

Applications
for cardboard, for paper, for plastics, for textiles
Orientation
horizontal
Other characteristics
automatic, hydraulic, high-density, high-power, triple compression
Bale weight

Min.: 1,100 kg
(2,425 lb)

Max.: 1,300 kg
(2,866 lb)

Width

410 cm
(161 in)

Depth

1,005 cm
(396 in)

Motor power

90 kW
(122.4 hp)

Press force

150 t
(165 us ton)

Description

Overview
  • The ENERPAT HBA-150-110125 is a heavy-duty, fully automatic horizontal baler designed for industrial recycling of corrugated cardboard and OCC. It produces high-density bales with automatic tying and ejection to optimise storage, transport and recycling value.


Key specifications
  • Bale size: 1100 × 1250 × L (mm)
  • Bale weight: 1100–1300 kg
  • Main compression force: 150 tons
  • Power: 90 kW
  • Machine dimensions (L×W×H): 10050 × 4100 × 4910 mm
  • Operation mode: Fully automatic with automatic tying and bale ejection


Operating principle
  • Conveying and feeding: Material is transferred into the hopper/chamber of the horizontal baler for continuous or batch feeding.
  • Hydraulic compression: Synchronized multi-cylinder hydraulic system performs staged compression for uniform density.
  • Bundling & ejection: Automatic tying using high-tensile quenched steel wire and automatic ejection of formed bales.


Applications / Suitable materials
  • Cardboard & paper: OCC, corrugated boxes, corrugator trim and box plant scrap (primary use).
  • Plastics: PET bottles and HDPE containers in mixed-stream facilities.
  • Textiles: Bulky used clothing and textile scraps suitable for baling.
  • Specialty streams: Shredded paper, EPS foam and other compactable waste streams.


HBA series — model selection
  • HBA-30-5050 — Bale 500×500×L — Bale weight 40–70 kg — Motor 11 kW — Press force 30 t — Size 5300×2600×1750 mm
  • HBA-40-7272 — Bale 720×720×L — Bale weight 200–500 kg — Motor 22 kW — Press force 40 t — Size 6770×3050×3580 mm
  • HBA-60-11075 — Bale 1100×750×L — Bale weight 400–700 kg — Motor 22 kW — Press force 60 t — Size 6880×3850×3550 mm
  • HBA-80-11075 — Bale 1100×750×L — Bale weight 600–900 kg — Motor 37 kW — Press force 80 t — Size 6880×3850×3550 mm
  • HBA-100-110110 — Bale 1100×1100×L — Bale weight 800–1100 kg — Motor 45 kW — Press force 100 t — Size 8560×3950×4550 mm
  • HBA-120-110125 — Bale 1100×1250×L — Bale weight 900–1200 kg — Motor 55 kW — Press force 120 t — Size 9250×4150×4850 mm
  • HBA-150-110125 — Bale 1100×1250×L — Bale weight 1100–1300 kg — Motor 90 kW — Press force 150 t — Size 10050×4100×4910 mm
  • HBA-200-110125 — Bale 1100×1250×L — Bale weight 1250–1350 kg — Motor 110 kW — Press force 200 t — Size 10050×4100×4910 mm


Technical characteristics
  • Model (series): HBA series
  • Denomination: HBA-150-110125 (product model variant)
  • Brand: ENERPAT
  • Bale dimensions (W×H×L): 1100 × 1250 × L (mm)
  • Bale weight (cardboard): 1100–1300 kg
  • Main compression (press force): 150 tons
  • Motor / Power: 90 kW
  • Machine overall dimensions (L×W×H): 10050 × 4100 × 4910 mm
  • Operation mode: Fully automatic with automatic tying and bale ejection
  • Compression system: Multi-cylinder synchronized hydraulic compression (3-action) for uniform bale density
  • Tying: High-tensile quenched steel wire with German automatic tying technology
  • Control: Siemens/Schneider PLC touchscreen control with real-time monitoring and alarms
