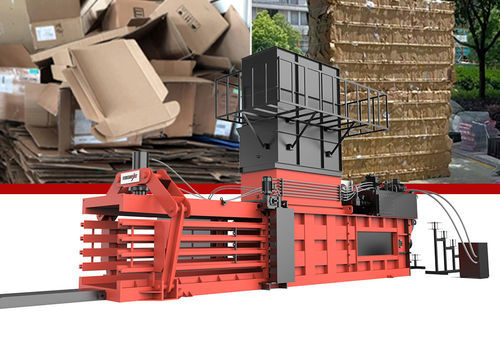

Cardboard baling press HBA-200-110125

for paperfor plasticsfor waste

The ENERPAT HBA-200-110125 is a fully automatic, heavy-duty horizontal baler engineered for high-capacity baling of waste paper, corrugated cardboard, rigid plastics and bulky textiles. It delivers a 200-ton compression force with a large 1100×1250 mm chamber and can produce bales weighing up to 1,350 kg, optimizing storage and transport efficiency.

Applications

• MRFs & recycling centres — continuous automatic baling of OCC, mixed paper and plastics
• Corrugated box plants — baling corrugator trim and production waste
• Plastic recycling facilities — compacting PET, HDPE and (with options) plastic film
• Textile & clothing sorters — compressing bulky garments and textile scraps

Materials handled

• Paper & cardboard (OCC, mixed paper, corrugator trim)
• Plastics (PET bottles, HDPE containers, optional film handling)
• Textiles and used clothing
• Specialty streams (EPS foam, shredded paper)

Operating principle

• Conveying & feeding — material transferred into the hopper/chamber
• Hydraulic compression — high-flow hydraulic system compresses material
• Automatic bundling & ejection — auto-tying system forms and ejects dense bales

Key advantages

• 200-ton compression force and large chamber (1100×1250 mm) for high-density bales up to ~1,350 kg
• 3-action (triple-cylinder) compression for superior bale density and square bale shape
• German-engineered automatic tying technology with high-tensile quenched steel wire for secure ties
• Robust monolithic steel frame (ready-to-run design) for stability and minimal setup
• Powerful, leak-resistant hydraulic system with high-flow cartridge valve block and H-type fittings
• Intelligent PLC control (Siemens/Schneider) with real-time monitoring and alarms

Technical specifications

• Model (series): HBA
• Brand: ENERPAT
• Compression (press) force: 200 t
• Chamber size (WxH): 1100 × 1250 mm
• Typical bale weight (cardboard): 1250–1350 kg
• Motor power: 110 kW
• Machine footprint (L×W×H): 10050 × 4100 × 4910 mm
• Tying: automatic German tying technology using high-tensile wire
• Compression system: triple-cylinder (3-action) compression for high bale density
• Hydraulics: high-flow, leak-preventing cartridge valve block and H-type fittings
• Control: Siemens/Schneider PLC with intelligent monitoring and automatic alarms
