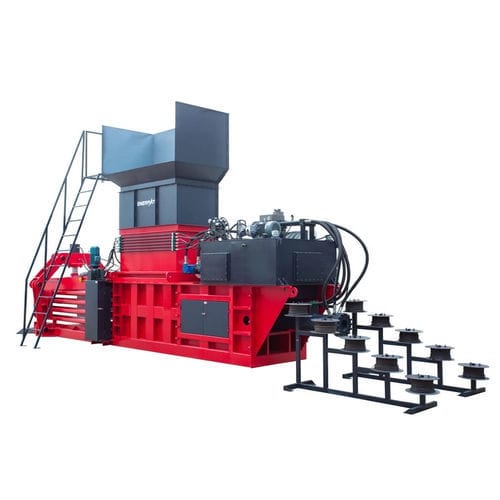

Textile baling press HBA series

for cansfor bulk materialsfor paper

Overview
Automated horizontal baler designed for high-volume industrial recycling and waste processing. Handles up to 20 tonnes per hour and produces dense, consistent bales with integrated Auto-Tie automatic strapping to minimise manual handling and optimise storage and transport.

Key Features

• Preset bale length and weight control for repeatable output
• Automatic Auto-Tie strapping system for consistent tying cycles
• Three-way compression technology for high-density bales
• European-designed hydraulic system with premium valves and pump components
• PLC control and industrial electrical components from Siemens and Schneider
• Air-conditioning cooling for continuous operation in demanding environments
• Plug-and-play integrated frame for simplified installation

Materials Processed / Typical Applications

• Shrink wrap and stretch film
• PET bottles and rigid plastics
• Aluminium and steel cans
• RDF (refuse-derived fuel) fractions
• Waste paper, cardboard and packaging scrap
• Textiles and short fibre materials
• Agricultural residues (straw, hay)
• Municipal recyclable fractions and industrial scrap baling

Datasheet
Model | Bale Size (WxHxL) (mm) | Bale Weight (Cardboard) (kg) | Motor Power (kW) | Press Force (t) | Machine Size (LxWxH) (mm)
HBA-80-11075 | 1100×750×L | 600-900 | 37 | 80 | 6880×3850×3550
HBA-100-110110 | 1100×1100×L | 800-1100 | 45 | 100 | 8560×3950×4550
HBA-120-110125 | 1100×1250×L | 900-1200 | 55 | 120 | 9250×4150×4850
HBA-150-110125 | 1100×1250×L | 1100-1300 | 90 | 150 | 10050×4100×4910
HBA-200-110125 | 1100×1250×L | 1250-1350 | 110 | 200 | 10050×4100×4910

Additional Details

• Automated plug-and-play frame reduces installation time and enables immediate commissioning
• High-quality electrical architecture for simplified maintenance and real-time monitoring
• Designed for continuous, high-volume recycling operations and industrial use

Technical specifications

• Throughput: up to 20 tonnes per hour (high-volume operation)
• Automatic bale tying: German-engineered Auto-Tie/strapping technology with high-quality wire
• Compression: three-direction compression for dense, uniform bales
• Hydraulics: European-designed hydraulic system with premium valves and pumps; air-conditioning cooling for continuous operation
• Electrical: PLC control; key components from Siemens and Schneider
• Material compatibility: shrink wrap, film, PET, rigid plastics, aluminium cans, steel cans, RDF, cardboard, paper, textiles, agricultural residues and other recyclables
• Available models and key specs (excerpt): HBA-80-11075 (37 kW, 80 t, bale 600-900 kg); HBA-100-110110 (45 kW, 100 t, bale 800-1100 kg); HBA-120-110125 (55 kW, 120 t, bale 900-1200 kg); HBA-150-110125 (90 kW, 150 t, bale 1100-1300 kg); HBA-200-110125 (110 kW, 200 t, bale 1250-1350 kg)
