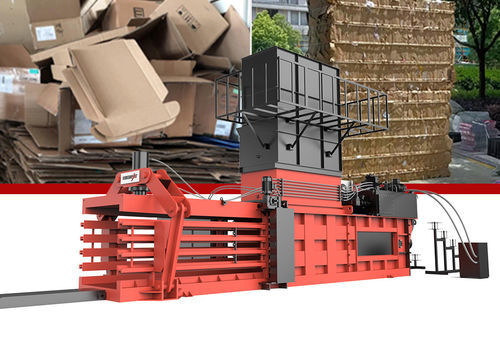

Cardboard baling press HBA-30-5050

for paperfor plasticsfor bottles

Overview: The ENERPAT HBA-30-5050 is a fully automatic horizontal baler engineered for small to medium recycling operations. It automates feeding, hydraulic compression and tying to produce uniform, transport-ready bales with minimal operator intervention.

Industry applications:

• Recycling centers and materials recovery facilities (MRF)
• Paper mills and corrugator operations
• E-commerce fulfillment and distribution hubs
• Packaging and logistics centers

Key features / Core advantages:

• Pre-assembled, plug-and-play installation — ready for power connection and start-up.
• Tri-action hydraulic compression — three synchronized cylinders ensure uniform density across the bale.
• German automatic tying system — high-tensile quenched steel wire and automated tying for secure bundles.
• Robust hydraulic components and leak-resistant seals — cartridge valves and Hallite seals reduce maintenance.
• PLC touchscreen control (Siemens/Schneider options) — one-touch operation, configurable cycles and automated fault reporting.

Operating principle:

• Conveying & feeding: material is transferred into the hopper and fed automatically into the compression chamber.
• Hydraulic compression: synchronized cylinders compress material to target density.
• Tying & ejection: automated tying and ejection prepare bales for storage or transport.

Materials handled:

• Corrugated cardboard / OCC — direct compression for retailers and distributors.
• Plastic film and stretch wrap — high-pressure baling for lightweight films.
• PET / HDPE bottles — pre-flattening recommended to increase density.
• Textiles and non-woven materials — remove metal parts before baling.
• Aluminium cans and thin-gauge metals — suitable for densification prior to recycling.
• Mixed paper and foam — optional high-pressure configuration for low-density items.

Specification Sheet:

• HBA-30-5050 — Bale size (WxHxL): 500×500×L (mm); Bale weight (cardboard): 40–70 kg; Motor power: 11 kW; Press force: 30 t; Machine size (L×W×H): 5300×2600×1750 mm.
• HBA-40-7272 — Bale size: 720×720×L (mm); Bale weight: 200–500 kg; Motor power: 22 kW; Press force: 40 t; Machine size: 6770×3050×3580 mm.
• HBA-60-11075 — Bale size: 1100×750×L (mm); Bale weight: 400–700 kg; Motor power: 22 kW; Press force: 60 t; Machine size: 6880×3850×3550 mm.
• HBA-80-11075 — Bale size: 1100×750×L (mm); Bale weight: 600–900 kg; Motor power: 37 kW; Press force: 80 t; Machine size: 6880×3850×3550 mm.
• HBA-100-110110 — Bale size: 1100×1100×L (mm); Bale weight: 800–1100 kg; Motor power: 45 kW; Press force: 100 t; Machine size: 8560×3950×4550 mm.
• HBA-120-110125 — Bale size: 1100×1250×L (mm); Bale weight: 900–1200 kg; Motor power: 55 kW; Press force: 120 t; Machine size: 9250×4150×4850 mm.
• HBA-150-110125 — Bale size: 1100×1250×L (mm); Bale weight: 1100–1300 kg; Motor power: 90 kW; Press force: 150 t; Machine size: 10050×4100×4910 mm.
• HBA-200-110125 — Bale size: 1100×1250×L (mm); Bale weight: 1250–1350 kg; Motor power: 110 kW; Press force: 200 t; Machine size: 10050×4100×4910 mm.

Characteristics / Technical specifications:

• Model: HBA-30-5050
• Brand: ENERPAT
• Chamber / Bale size (WxHxL): 500×500×L (mm)
• Typical bale weight (cardboard): 40–70 kg
• Motor power: 11 kW
• Press (compaction) force: 30 t
• Machine footprint (L×W×H): 5300×2600×1750 mm
• Operation: Fully automatic feeding, compressing, tying and ejection
• Control: PLC with touchscreen (Siemens/Schneider options)
• Certifications: CE; ISO-compliant manufacturing; German automatic tying components
