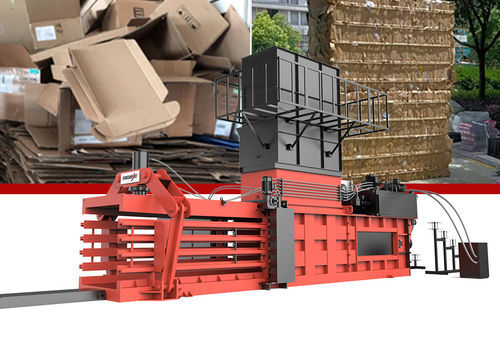

Cardboard baling press HBA-100-110110

for paperfor plasticsfor bottles

Overview

The ENERPAT HBA-100-110110 is an automatic horizontal baler designed for high-volume industrial recycling and waste-management operations. It compacts cardboard, plastics and PET bottles into dense, transport-ready bales using a heavy-duty hydraulic system and automated tying and control systems.

Key features

• High compression: 100-ton press force for deep, consistent compaction.
• Large bale chamber: 1100 × 1100 × L mm (length configurable) for high-density OCC bales.
• High throughput: Typical 7–12 t/h depending on material and feed system.
• Powertrain: Standard 45 kW main motor (HBA-100-110110) with high-performance hydraulic circuits and cartridge valves.
• Three-dimensional compression: Synchronized main and side cylinders for uniform density.
• Automatic tying: German-designed tying unit using quenched steel wire for secure bundles.
• Control and diagnostics: Siemens PLC, Schneider components, touchscreen interface and auto-diagnostic functions.
• Compliance: CE certification for applicable European directives.

Material applications

• Paper & cardboard: OCC, mixed paper, newsprint.
• Plastics: PET bottles, LDPE film, HDPE/PP rigid plastics, woven bags.
• Other recyclables: Aluminum cans, certain textile wastes and non-hazardous industrial packaging.

Operating principle

• Feeding: Loose material is conveyed into the hopper and chamber.
• Compression: Hydraulic main and side cylinders compress material into a dense bale.
• Tying & ejection: Automated tying secures the bale; ejection system discharges finished bales for handling.

Specification sheet (representative models)

• HBA-30-5050 — Bale size: 500×500×L mm; Bale weight (cardboard): 40–70 kg; Motor: 11 kW; Press: 30 t; Machine size: 5300×2600×1750 mm.
• HBA-40-7272 — Bale size: 720×720×L mm; Bale weight: 200–500 kg; Motor: 22 kW; Press: 40 t; Machine size: 6770×3050×3580 mm.
• HBA-60-11075 — Bale size: 1100×750×L mm; Bale weight: 400–700 kg; Motor: 22 kW; Press: 60 t; Machine size: 6880×3850×3550 mm.
• HBA-80-11075 — Bale size: 1100×750×L mm; Bale weight: 600–900 kg; Motor: 37 kW; Press: 80 t; Machine size: 6880×3850×3550 mm.
• HBA-100-110110 — Bale size: 1100×1100×L mm; Bale weight: 800–1100 kg; Motor: 45 kW; Press: 100 t; Machine size: 8560×3950×4550 mm.
• HBA-120-110125 — Bale size: 1100×1250×L mm; Bale weight: 900–1200 kg; Motor: 55 kW; Press: 120 t; Machine size: 9250×4150×4850 mm.
• HBA-150-110125 — Bale size: 1100×1250×L mm; Bale weight: 1100–1300 kg; Motor: 90 kW; Press: 150 t; Machine size: 10050×4100×4910 mm.
• HBA-200-110125 — Bale size: 1100×1250×L mm; Bale weight: 1250–1350 kg; Motor: 110 kW; Press: 200 t; Machine size: 10050×4100×4910 mm.

Applications / Typical users

• Materials recovery facilities (MRFs) and recycling centers processing OCC, mixed paper and plastics.
• Large distribution centers and supermarkets compacting packaging waste.
• Plastics processors, manufacturers and paper mills handling in-house scrap.
• Textile and garment manufacturers compacting fabric waste.

Technical specifications

• Series: HBA series.
• Press force (HBA-100-110110): 100 t.
• Bale chamber (HBA-100-110110): 1100 × 1100 × L mm (length configurable).
• Bale weight (cardboard): ~800–1100 kg (model-dependent).
• Motor power (HBA-100-110110): 45 kW (range 11–110 kW across models).
• Throughput: Typical 7–12 t/h (material and feed dependent).
• Tying: German-designed automatic tying using quenched steel wire.
• Control: Siemens PLC, Schneider components, touchscreen and auto-diagnostics.
• Hydraulics: High-flow cartridge valves, H-type tapered interfaces and Hallite seals.
• Certifications: CE.
