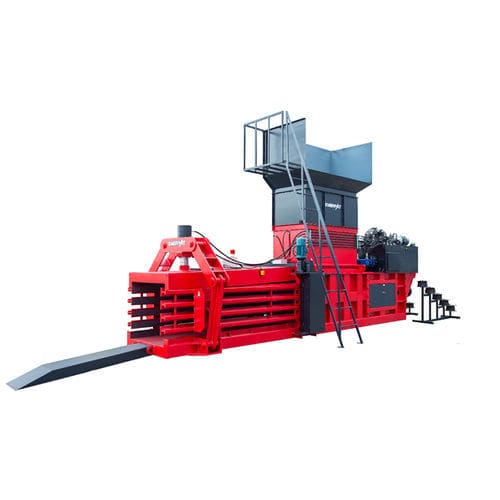

Refused-derive fuel baling press HBA

for paperfor metalsfor cans

Basic Info
Model NO.: HBA Series
Application: Waste paper, steel pipe, steel coil, household chemicals, cosmetics, skin care products, PET bottles, plastics, aluminium and steel cans, RDF
Strapping Material: Steel wire or PP belt
Packaging: Plastic film, steel frames, wooden boxes
Automatic Grade: Fully automatic
Driven Type: Hydraulic
Structure: Horizontal track strapping
Press Force: 40 t - 150 t
Motor Power: 22 kW - 90 kW
Tie Model: Auto-tie
Baling Type: Horizontal baling
Transport Package: Plastic film, steel frames, wooden boxes
Trademark: Enerpat
Origin: China
HS Code: 8422400090
Production Capacity: 20 PCS/Month

Product Description
Fully automatic horizontal balers of the HBA Series are engineered for continuous, high-throughput baling of recyclable and industrial materials. Feed is automated, material is compressed into stable, high-density bales and tied automatically when the selected bale length is reached. CE marked and designed for cost-efficient 24/7 operations, these machines handle cardboard, paper, PET bottles, soft and hard plastics, aluminium and steel cans, RDF and other bulky recyclables. Recommended for applications with throughput above 2 tonnes per hour.

Details / Features
Fully Automatic Horizontal Baler

• Automated feeding, compression and automatic tying for continuous high-throughput production.
• Adjustable bale length and weight; automatic tying when the preset length is reached.
• Suitable for a wide range of materials: paper, cardboard, PET, plastics, metals and RDF.

Three-way Compression

• Three-way compression mechanism employs three hydraulic cylinders linked to the main compression cylinder pressure.
• Design produces well-formed blocks with high final density, improving storage and transport efficiency.

Hydraulic System

• European-style hydraulic configuration for stable, efficient performance.
• Configured with internationally recognized valves and pumps.
• Optional air-conditioned oil cooler for reliable 24/7 operation.

Electric System

• Main electrical components selected from Schneider.
• PLC: Siemens.
• Electrical and safety design complies with CE standards.

Automatic Baling System

• Automatic strapping technology (German-style) provides consistent, efficient tying.
• Core components are imported to ensure reliability and long service life.

Applications
Designed for recycling centers, packaging plants, manufacturers and any large waste generators requiring compacting and baling of cardboard, plastics, PET bottles, aluminium and steel cans, RDF and similar materials.

Technical Specifications

• Model NO.: HBA Series
• Press Force: 40 t - 150 t
• Motor Power: 22 kW - 90 kW
• Driven Type: Hydraulic
• Structure: Horizontal track strapping
• Tie Model: Auto-tie (automatic tying)
• Baling Type: Horizontal baling
• Strapping Material: Steel wire or PP belt
• Packaging / Transport Package: Plastic film, steel frames, wooden boxes
• Automatic Grade: Fully automatic
• Applications: Waste paper, steel pipe, steel coil, household chemicals, cosmetics, skin care products, PET bottles, soft and hard plastics, aluminium and steel cans, RDF
• Trademark: Enerpat
• Origin: China
• HS Code: 8422400090
• Production Capacity: 20 PCS / Month
