Waste baling press HBA series

for cardboardfor paperfor plastics

Product Overview

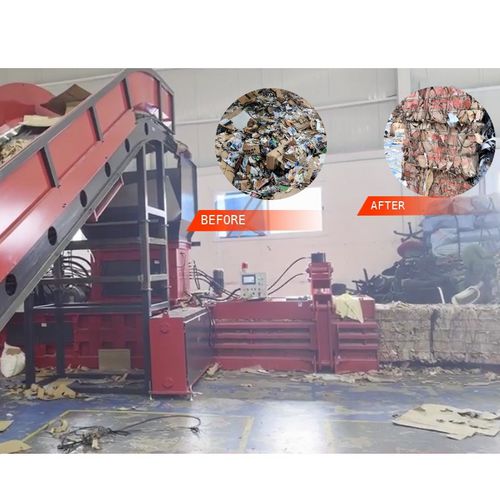

The Enerpat HBA Series horizontal hydraulic baler is designed for automatic compression of mattress fabric, foam, textiles, cardboard, cloth and waste paper into dense bales. Large feed hoppers support gravity or belt conveyor feeding for continuous operation. The HBA range combines three-direction compression with configurable bale chamber depth to increase bale density and optimise transport and storage efficiency.

Key Features

• Automatic hydraulic operation for continuous high-throughput baling
• Three-direction compression with triple hydraulic cylinders for consistent bale shape
• Three-direction bale closing and adjustable chamber depth to match material and bale specification
• Plug-and-play mechanical layout for straightforward installation and commissioning
• High-quality components: cartridge hydraulic valve group, H-type tapered fittings, Hallite hydraulic seals
• German automatic tying system for reliable, tight bale binding
• Siemens/Schneider PLC control with touchscreen/button one-click operation, auto alarms and programmable compression/feeding settings

Product Details

• Customization: Available
• Condition: New
• Warranty: 12 Months
• Feature: Automatic, High Efficiency
• After-sales Service: Overseas Service Center Available
• Press Force: 40 t - 150 t
• Motor Power: 22 kW - 90 kW
• Tie Model: Auto Tie (German auto-tying system)
• Baling Type: Horizontal baling
• Transport Package: Plastic film, steel frames and wooden boxes

Models & Technical Table
Model | Bale Size (WxHxL)(mm) | Bale Weight (Cardboard)(kg) | Motor Power (kW) | Press Force (t) | Machine Size (LxWxH)(mm)
HBA-30-5050 | 500×500×L | 40-70 | 11 | 30 | 5300×2600×1750
HBA-40-7272 | 720×720×L | 200-500 | 22 | 40 | 6770×3050×3580
HBA-60-11075 | 1100×750×L | 400-700 | 22 | 60 | 6880×3850×3550
HBA-80-11075 | 1100×750×L | 600-900 | 37 | 80 | 6880×3850×3550
HBA-100-110110 | 1100×1100×L | 800-1100 | 45 | 100 | 8560×3950×4550
HBA-120-110125 | 1100×1250×L | 900-1200 | 55 | 120 | 9250×4150×4850
HBA-150-110125 | 1100×1250×L | 1100-1300 | 90 | 150 | 10050×4100×4910
HBA-200-110125 | 1100×1250×L | 1250-1350 | 110 | 200 | 10050×4100×4910

Applications
Suitable for mattress fabric, mattress foam, mattress textiles, cardboard, cloth, waste paper, plastic bottles and other non-metallic recyclable materials. Commonly deployed in recycling plants, mattress recycling operations and material recovery facilities to increase throughput and recovery value.

Advantages & Design Highlights

• Optimised bale chamber depth for easier loading and improved bale density
• Three-direction compression and closing for uniform bale geometry
• High-strength quenched steel wire components for wear and corrosion resistance
• Real-time monitoring of runtime, current and temperature for preventive maintenance

Characteristics / Technical Specifications

• Trademark: Enerpat
• Series: HBA series
• Press Force: 40 t - 150 t
• Motor Power Range: 22 kW - 90 kW
• Tie Model: Auto Tie (German auto-tying system)
• Baling Type: Horizontal baling
• Condition: New
• Warranty: 12 Months
• After-sales Service: Overseas Service Center Available
• Transport Package: Plastic film, steel frames and wooden boxes
• Origin: China
• HS Code: 8422400090
• Production Capacity: 20 PCS/Month
• MOQ: 1 Set
• Typical Price Range (per set): US$14,000.00 - US$200,000.00
