Cardboard baling press HBA-40-7272for paperfor plasticsfor bottles
Add to favorites
Compare this product
Characteristics
- Applications
- for cardboard, for paper, for plastics, for textiles, for bottles, for film
- Orientation
- horizontal
- Other characteristics
- automatic, hydraulic, high-capacity, high-density, triple compression
- Bale weight
Max.: 500 kg
(1,102 lb)Min.: 200 kg
(441 lb)- Width
305 cm
(120 in)- Depth
677 cm
(267 in)- Motor power
22 kW
(29.9 hp)- Press force
40 t
(44 us ton)
Description
Overview
Key features
Operating principle
Materials handled
Selected specifications
Technical specifications

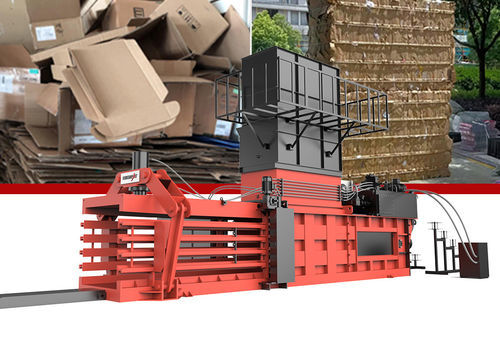

- The ENERPAT HBA-40-7272 is a fully automatic horizontal auto-tie baling press designed for high-volume recycling and material recovery facilities.
- It provides continuous baling with automatic wire tying and automatic bale ejection to minimize operator handling and maximize throughput.
Key features
- Fully automatic auto-tie operation with automatic bale ejection for reduced manual intervention.
- Tri-action hydraulic compression system (three cooperating cylinders) for consistent high-density bales.
- Automatic German-engineered high-tensility wire tying system to secure bales during handling and transport.
- High-performance hydraulic circuit with cartridge valves, H-type tapered connections and long-life seals to limit leakage and maintenance intervals.
- Intelligent PLC control (Siemens/Schneider) with touchscreen for one-touch operation and customizable compression and feeding cycles.
Operating principle
- Conveying and feeding: material is fed into the hopper or chamber via conveyor or manual feed.
- Hydraulic compression: the hydraulic system compresses loose material into dense bales under programmed cycles and pressures.
- Bale tying & ejection: the automatic tying system secures each bale and the ejection mechanism removes finished bales for transfer or storage.
Materials handled
- Corrugated cardboard / OCC
- Plastic film / stretch film
- PET and other plastic bottles (pre-flattening recommended)
- HDPE containers / jerrycans (rigid plastics may require pre-crushing)
- Textiles / used clothing (remove metal components before baling)
- Foam / EPS (use high-pressure options for low-density materials)
- Mixed paper / newsprint
- Agricultural biomass (dry plant residues)
Selected specifications
- Model: HBA-40-7272
- Bale size (WxHxL): 720×720×L (mm)
- Bale weight (cardboard): 200–500 kg
- Motor power: 22 kW
- Press force: 40 t
- Machine size (L×W×H): 6770×3050×3580 mm
Technical specifications
- Model series: HBA
- Model designation: HBA-40-7272
- Bale chamber (WxH): 720 × 720 mm (length variable)
- Typical bale weight (cardboard): 200–500 kg
- Compression force: 40 tons
- Motor power: 22 kW
- Machine footprint / overall size: 6770 × 3050 × 3580 mm
- Control: PLC (Siemens/Schneider) with touchscreen interface
- Hydraulics: cartridge valves, H-type tapered connections, long-life seals (e.g., Hallite)
- Tying system: automatic German-engineered high-tensility wire tying
