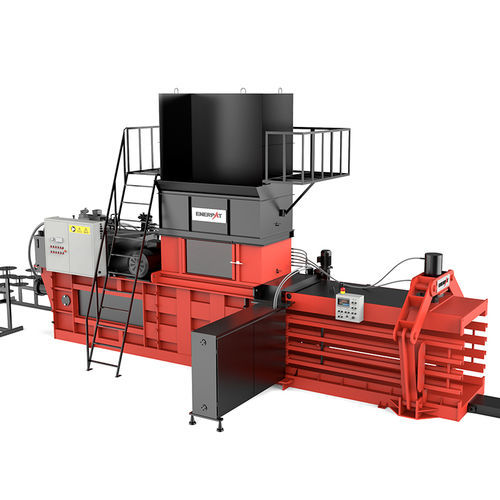

Cardboard baling press HBA

for plasticsfor bottlesfor waste

The ENERPAT HBA Automatic Horizontal Baler is a fully automatic auto-tie horizontal baler designed for large recycling centres, manufacturing and logistics facilities. It provides consistent bale formation, reliable operation and high throughput for a wide range of recyclable materials.

Overview

• Fully automatic auto‑tie horizontal baler using German automatic bundling technology with high‑strength tempered iron wire for secure, long‑lasting ties.
• Three‑way compression structure (three hydraulic side cylinders plus main cylinder) to improve bale shape and increase density.
• PLC control (Siemens/Schneider) with touchscreen and one‑touch operation, automatic alarms and real‑time monitoring of operational data.
• Hydraulic system with large‑flow cartridge valve assembly (H‑type interface) and Hallite seals to minimise leakage and ensure long service life.
• Suitable for: cardboard (OCC), plastics (bottles, film), woven bags, municipal and industrial dry waste, straw and other dry recyclables.
• Field performance examples: customised solution for BMW Brilliance achieving ~8 t/h for cardboard; industrial setups reporting up to ~20 t/h for high‑throughput applications.

Available models & typical specifications

• HBA40‑7272 — Press force: 40 t; Motor power: 22 kW; Bale size: 720 × 720 × L (mm); Bale weight (OCC): 200–500 kg; Feed hopper: 1500 × 640 mm; Capacity (OCC): 1–3 t/h; Tying wires: 4
• HBA80‑11075 — Press force: 80 t; Motor power: 37 kW; Bale size: 1100 × 750 × L (mm); Bale weight (OCC): 600–900 kg; Feed hopper: 1500 × 1020 mm; Capacity (OCC): 4–8 t/h; Tying wires: 4
• HBA100‑110110 — Press force: 100 t; Motor power: 45 kW; Bale size: 1100 × 1100 × L (mm); Bale weight (OCC): 800–1100 kg; Feed hopper: 1800 × 1020 mm; Capacity (OCC): 7–12 t/h; Tying wires: 5
• HBA120‑110125 — Press force: 120 t; Motor power: 55 kW; Bale size: 1100 × 1250 × L (mm); Bale weight (OCC): 900–1200 kg; Feed hopper: 2100 × 1020 mm; Capacity (OCC): 9–13 t/h; Tying wires: 5
• HBA150‑110125 — Press force: 100 t (as listed); Motor power: 45 kW; Bale size: 1100 × 1100 × L (mm); Bale weight (OCC): 800–1100 kg; Feed hopper: 1800 × 1020 mm; Capacity (OCC): 7–12 t/h; Tying wires: 5
• HBA200‑110130 — Press force: 120 t (as listed); Motor power: 55 kW; Bale size: 1100 × 1250/1300 × L (mm); Bale weight (OCC): 900–1200 kg; Feed hopper: 2100 × 1020 mm; Capacity (OCC): 9–13 t/h (field applications up to ~20 t/h); Tying wires: 5

Core features

• Three‑way hydraulic compression for improved bale geometry and higher density.
• Automatic bundling (auto‑tie) mechanism reducing manual labour and ensuring consistent, secure ties with high‑strength tempered wire.
• Robust hydraulic components with Hallite seals to minimise leakage and extend system life.
• PLC‑based control (Siemens/Schneider) with touchscreen for scheduling, monitoring and automatic alarms.
• Modular design for fast commissioning and simplified maintenance; original branded electrical components for operational stability.

Technical specifications

• Brand: ENERPAT
• Model family: HBA
• Press force range: 40–200 t (model dependent)
• Motor power range: 22–55 kW
• Typical bale sizes: 720×720×L; 1100×750×L; 1100×1100×L; 1100×1250×L
• Bale weights (OCC): ~200–1200 kg depending on model/material
• Feed hopper examples: 1500×640 mm, 1500×1020 mm, 1800×1020 mm, 2100×1020 mm
• Capacity (OCC): ~1–3 t/h up to ~9–13 t/h; specific installations reported up to ~20 t/h
• Tying wires per bale: 4–5
• Control: PLC (Siemens/Schneider), touchscreen/button operation, automatic alarm
• Hydraulics: large‑flow cartridge valve assembly, H‑type interface, Hallite seals
• Warranty: 1 year machine, 5 years motor; free material testing and design support available
